СКУ: RM17UB310
Реле OV AND UV 3PH 220-480VAC BET 2PH 1C/O
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Depth
72
-
Number of contacts as change-over contact
1
-
With detachable clamps
FALSE
-
Voltage type for actuating
EV000509
-
Height
90
-
Rated control supply voltage Us at AC 50HZ
208
-
Rated control supply voltage Us at AC 60HZ
208
-
Width
17.5
-
Max. permitted off-delay time
30
-
Single-phase over voltage possible
TRUE
-
Three-phase over voltage possible
TRUE
-
Single-phase under voltage possible
TRUE
-
Three-phase under voltage possible
TRUE
-
Contains function DC-under voltage
FALSE
-
Contains function DC-over voltage
FALSE
-
Single-phase hysteresis possible
TRUE
-
Three-phase hysteresis possible
TRUE
-
Max. permitted delay-on energization time
0.5
-
Contains function DC-voltage hysteresis
FALSE
-
Type of voltage measuring range
EV000509
-
Voltage measuring range 1
183
-
Response value voltage
183
-
Min. adjustable off-delay time
0.3
-
Number of contacts as normally closed contact
-
Number of contacts as normally open contact

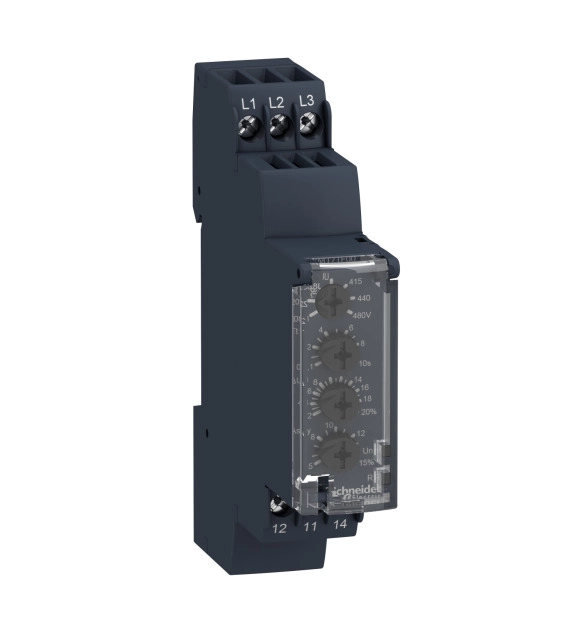

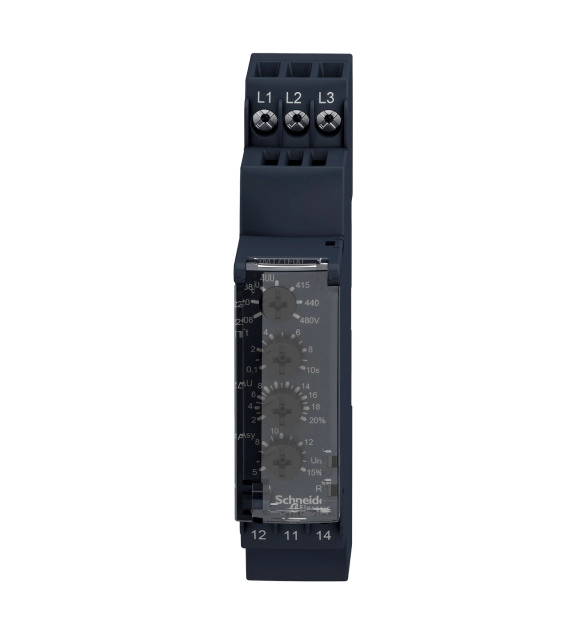

This Harmony RM17-UB relay allows monitoring of voltage control in 3-phase networks. This modular multi function 3-phase voltage control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.
