СКУ: ABLM1A05036

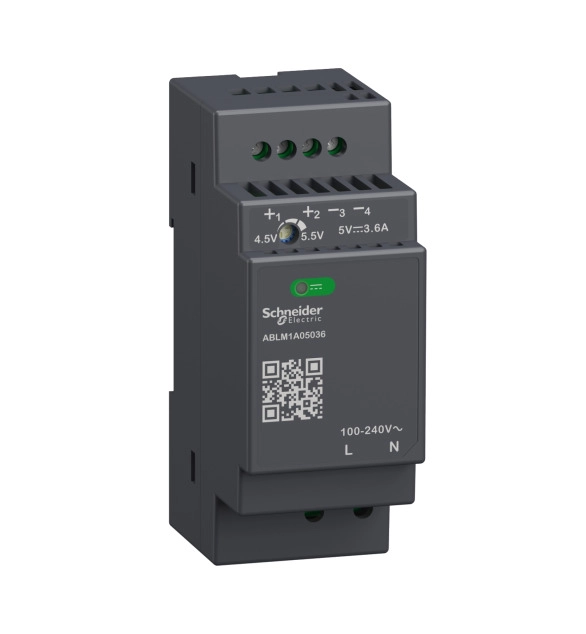

Регулирано захранване, 100-240V AC, 5V 3.6 A, еднофазно, модулно
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Degree of protection (IP)
EV006405
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Width
36
-
Rail mounting possible
TRUE
-
Voltage type of supply voltage
EV000460
-
Modular version
TRUE
-
Suitable for safety functions
TRUE
-
Height
91
-
Stabilized
TRUE
-
Secondary voltage adjustable
FALSE
-
Direct mounting possible
FALSE
-
Short-circuit-proof
FALSE
-
Wall mounting possible
FALSE
-
Built-in height
91
-
Power output
18
-
Rated supply voltage at AC 50 Hz
100
-
Nominal value output current 1
3.6
-
Rated supply voltage at AC 60 Hz
100
-
Nominal value output voltage 1
5
-
Max. output current 1
3.6
-
Output voltage stabilized
FALSE
-
Built-in width
36
-
Depth
55.6
-
1st secondary output voltage
100
This product is part of the Modicon ABL range, an offer of power supplies for industrial use. It is a regulated switch mode power supply. It has a rated input of 100V to 240V AC, a rated output current of 2,1A at 12V DC and a rated power output of 25W. It supplies control circuits in industrial and building automation. This power supply has a protection against overload and short-circuit. It operates from minus 25degrees celcius to plus 70degrees celcius, and from 0meter to 2000meters or 5000meters with derating. It measures 91mm high, 36mm wide and 55.6mm deep. It weighs 0.17kg. It is a power supply for industrial use. It conforms to CE, CB Scheme, cULus Listed, cURus Recognized, RCM, EAC, UKCA, KC, and to IEC/EN 62368-1, IEC/EN 61010-1, UL/CSA 61010-1/2 standards. Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. Type of protection is 4A, B or C curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. It installs on 35mm DIN rail. It brings energy to your automated systems. Designed with extreme compactness for simple machines and applications.
