СКУ: GBY120020K
Редуктор WPLE120 I=20
-
Brand
Schneider Electric
-
Accessory
TRUE
-
Spare part
FALSE
-
Type of electrical accessory/spare part
EV000154
-
Type of mechanical accessory/spare part
EV000154

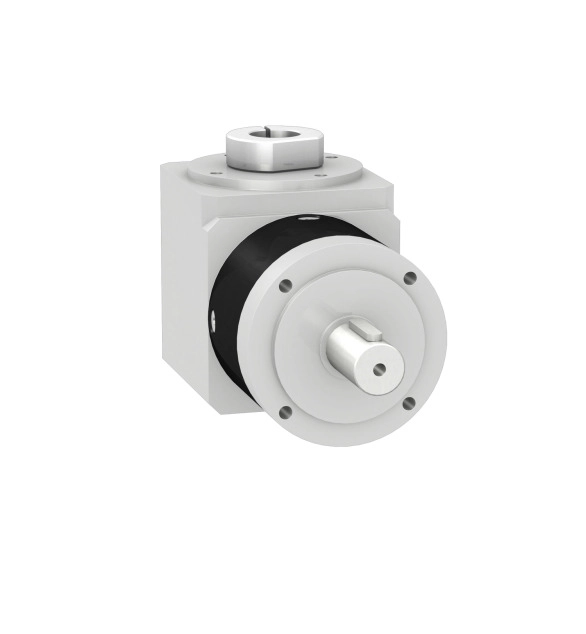

This product is part of the Lexium 32 range, an offer of angular planetary gearboxes. This angular planetary gearbox has straight teeth, lubricated for life. The external diameter of gearbox is 120mm. It is a gearbox with a reduction ratio of 20 1, maximum axial force (Fa) of 2100N at 100RPM and continuous output torque of 260Nm at 100RPM at 30°C. It offers service life of about 30,000 hours at 100RPM at 30°C. It is an IP54 rated product. The housing is made of black anodized aluminum. It weighs 14kg. This range is compatible with Lexium 32i, Lexium 32, Lexium 62 ILM, Lexium 52 and Lexium 62 servo drives. It can be mounted in any position. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
