СКУ: GBX060040K
Редуктор PLE60 I=40
-
Brand
Schneider Electric
-
Accessory
TRUE
-
Spare part
FALSE
-
Type of electrical accessory/spare part
EV000154
-
Type of mechanical accessory/spare part
EV000154

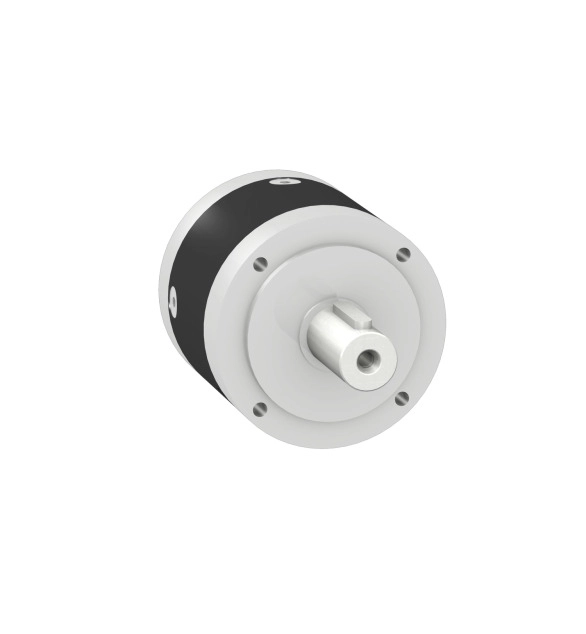

This planetary gearbox is part of the Lexium ILA, ILE, ILS range, an offer of integrated drives for motion control. This planetary gearbox has straight teeth, lubricated for life. The gearbox external diameter is 80mm. It is a gearbox with a reduction ratio of 40/1, a maximum axial force (Fa) of 450N at 100rpm and acontinuous output torque of 40N.m at 100RPM at 30°C. It is an IP54 rated product. It offers service life of about 30000h at 100RPM at 30°C. The enclosure is made of black anodized aluminium. It weighs 1.1kg. This gearbox is added to a motor to drastically decrease speed and/or increase torque. This gearbox is manufactured at a Schneider Electric production site ISO14001 certified. This product is compatible with Lexium servo motors. It is lubricated for life, and its service life is 30000h at 100rpm at 30°C. Lexium ILA, ILE, ILS are ervo motors with integrated drives for motion control. Lexium ILA, ILE, ILS are integrated drives for decentralised Motion Solutions with stepper, servo or brushless DC motor.
