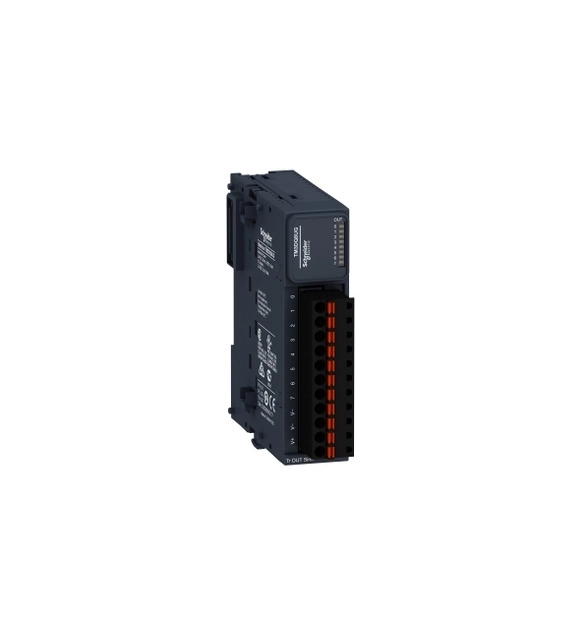

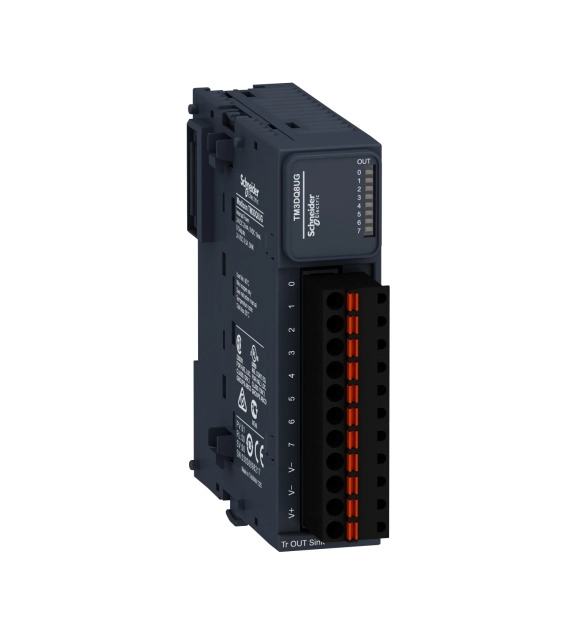

СКУ: TM3DQ8UG
Разширение, 8 изх. 24VDC, NPN
-
Brand
Schneider Electric
-
Performance level according to EN ISO 13849-1
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Type of electric connection
EV000154
-
Analogue inputs configurable
FALSE
-
Analogue outputs configurable
FALSE
-
Explosion safety category for dust
EV000154
-
Explosion safety category for gas
EV000154
-
Input, thermocouple
FALSE
-
Input signal, configurable
FALSE
-
Input, resistor
FALSE
-
Input, resistance thermometer
FALSE
-
Input, current
FALSE
-
Input, voltage
FALSE
-
Output signal configurable
FALSE
-
Number of analogue inputs
-
Number of analogue outputs
4
-
Output, voltage
FALSE
-
Output, current
FALSE
-
Width
12.5
-
Height
99
-
Depth
75
-
SIL according to IEC 61508
EV000599
-
Resolution of the analogue outputs
16
This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs. This analogue input module provides 4 inputs with 16bit and 15bit + sign resolution. It is an input module with a 24VDC rated supply voltage, a current consumption of 45mA/50mA at 5VDC via bus connector, 35mA/40mA at 24VDC via external supply. It transfers input signals such as push-buttons, switches, temperature sensors to the plc. There is an insulation between input and supply at 1500VAC, input and internal logic at 500VAC. It works via a 24VDC external power supply. It is furnished with a removable spring terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply. It is an IP20-rated product. Its dimensions are 23.6mm wide, 70mm deep and 90mm high. It weighs 0.110kg It is designed to detect the status of input signals such as push-buttons, switches, temperature sensors. This product is certified by CULus, CE, UKCA, RCM, EAC, and cULus HazLoc. This module is compatible with Modicon M262/M241/M251/M221 logic controllers and is configurable with EcoStruxure machine expert software. It is delivered in 1 package (PCE type). It is mounted on a symmetrical DIN rail. Or with a specific kit for plate or panel mounting. The specially developed Modicon TM3 I/O system enables flexible and customizable expansion of the I/O terminals in all the controllers. From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution.
