СКУ: GS1DU3
Разединител 3X30A J
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Version as emergency stop installation
FALSE
-
Number of poles
3
-
Version as safety switch
FALSE
-
Degree of protection (IP), front side
EV006405
-
Rated operation power at AC-23, 400 V
15
-
Motor drive integrated
FALSE
-
Suitable for floor mounting
FALSE
-
Motor drive optional
FALSE
-
Version as main switch
TRUE
-
Suitable for front mounting
FALSE
-
Cable entry
EV000154
-
Type of control element
EV005987
-
Conditioned rated short-circuit current Iq
100
-
Equipped with connectors
FALSE
-
With error protection
FALSE
-
Rated short-time withstand current lcw
100
-
Suitable for busbar mounting
FALSE
-
Rated permanent current Iu
30
-
Suitable for fuses
EV000154
-
Max. rated operation voltage Ue AC
800
-
Position control element
EV007926

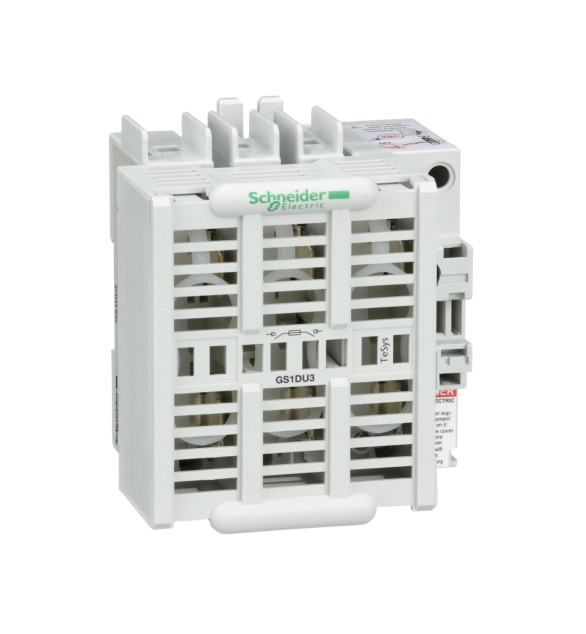

TeSys GS fuse switch-disconnector, 3 poles (3P), 30A/800V, to be used with class J fuse links up to 30A, for motor applications up to 15kW@400V AC-23. To be equipped with a direct operating handle GS1AH106 (to be ordered separately), or with an external front side mounting operating handle (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@600V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). UL/CSA certified.
