СКУ: DF221V
Разединител 125A за предпазител 22 X 58
-
Brand
Schneider Electric
-
Number of poles
1
-
Degree of protection (IP)
EV006405
-
Concurrently switching neutral conductor
FALSE
-
Mounting method
EV000242
-
Width in number of modular spacings
2
-
Lockable
FALSE
-
With optical defect indication
TRUE
-
Built-in depth
70
-
Nominal voltage
690
-
For fuse size
EV010288

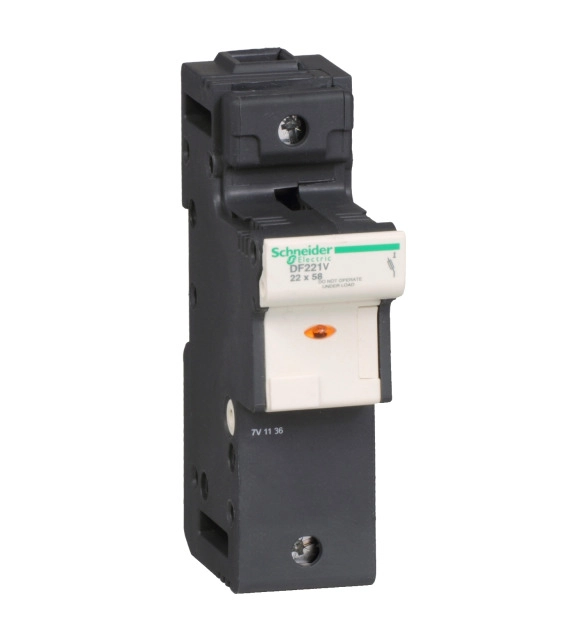

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links up to 125A and short circuit current up to 120kA at 400V. It provides blown fuse indication by LED. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, EAC).
