СКУ: LE1D40AP7
Пускател 40А/230V LE1D40AP7
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Rated operation power at AC-3, 400 V
18.5
-
Voltage type for actuating
EV000460
-
Degree of protection (IP)
EV006421
-
Suitable for emergency stop
FALSE
-
Supporting protocol for SERCOS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Supporting protocol for CAN
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Rail mounting possible
FALSE
-
Supporting protocol for Modbus
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
With transformer
FALSE
-
Type of electrical connection for auxiliary- and control current circuit
EV000415
-
Type of motor starter
EV004003
-
Supporting protocol for other bus systems
FALSE
-
With fuse
FALSE
-
Number of command positions
2
-
Rated control supply voltage Us at AC 50HZ
230
-
Rated control supply voltage Us at AC 60HZ
230
-
Width
200
-
Ambient temperature, upper operating limit
40
-
With short-circuit release
FALSE
-
Height
312
-
Depth
158.5
-
Rated operation current Ie
40
-
Rated operation current at AC-3, 400 V
40
-
Rated operation power at AC-3, 230 V, 3-phase
11
-
Rated power, 575 V, 60 Hz, 3-phase
22
-
Rated power, 460 V, 60 Hz, 3-phase
22
-
Number of indicator lights

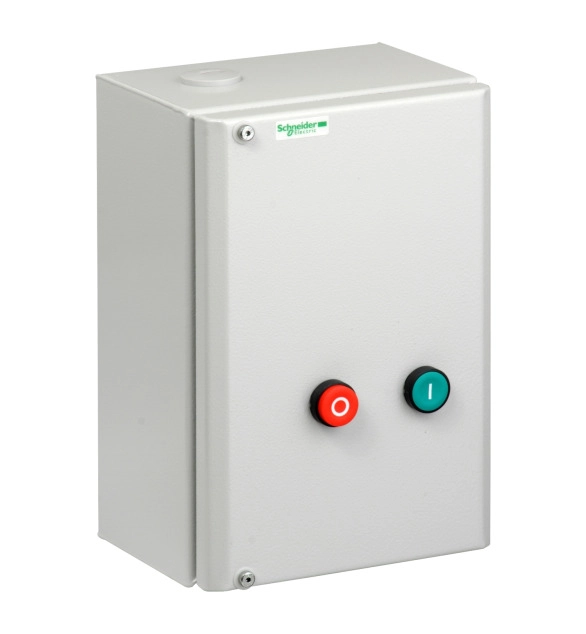

TeSys LE enclosed DOL starter for 3P non-reversing motor control up to 18.5kW at 400V. It includes a contactor LC1D with a 230V AC 50/60Hz control circuit. ON/OFF motor control by a green start push-button (I) and a red stop/reset push-button (O). Steel sheet enclosure providing IP65 protection. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom. To operate, it must be fitted with a LRD thermal overload relay depending on the motor power (to be ordered separately). Conforming to IEC 60947-4-1, environmental compliant (RoHS/REACh).
