СКУ: 47483

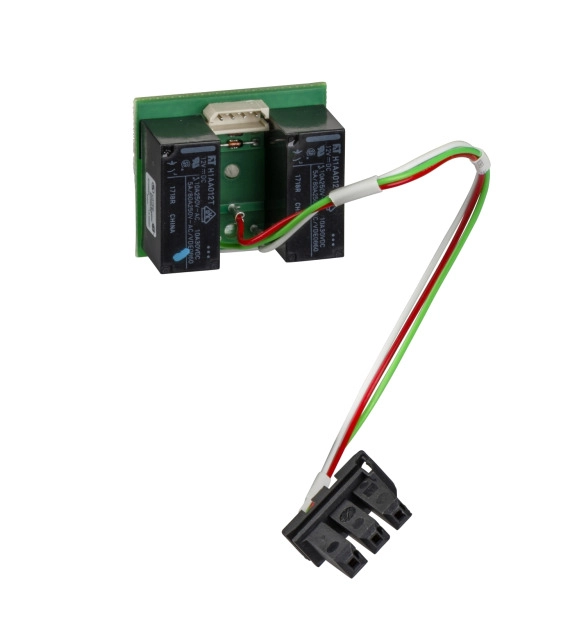

програмируеми контакти M2C - за изваждаем прекъсвач Masterpact NT

  • Brand
    Schneider Electric
  • Type of electric connection
    EV000415
  • Suitable for power circuit breaker
    TRUE
  • Suitable for overload relay
    FALSE
  • Suitable for off-load switch
    TRUE
  • Voltage type for actuating
    EV000509
  • Rated control supply voltage Us at AC 50HZ
    48
  • Rated control supply voltage Us at AC 60HZ
    48
  • Rated control supply voltage Us at DC
    48
  • Suitable for motor safety switch
    TRUE
  • Delayed
    FALSE
  • Number of contacts as normally open contact
  • Number of contacts as change-over contact
  • Number of contacts as normally closed contact

This is a motor mechanism (MCH) for drawout MasterPact NT circuit breakers. The motor mechanism module is used to remotely open and close the circuit breaker electrically. It is made up of a spring-charging motor equipped with an opening release and a closing voltage release. The spring-mechanism charging handle is used only as a backup if auxiliary power is absent. It is equipped with a 10A limit switch contact (CH) that signals the charged position of the mechanism. The operational control voltage is 200/240 VAC 50/60 Hz. The operating threshold is between 0.85xUn and 1.1xUn. The charging time is less than 4s. The maximum operating frequency should not exceed 3 cycles per minute.
