СКУ: LVS04113

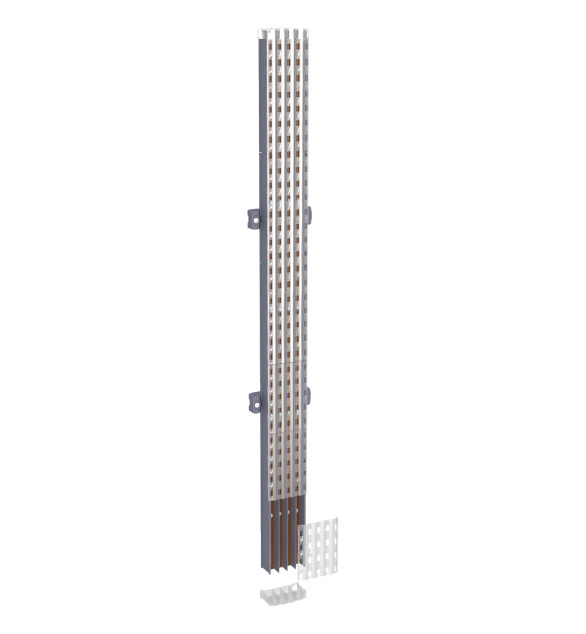

"PrismaSeT Linergy BW 3P изолиран шинопровод 400A L1000"

Brand
Schneider Electric
Surface protection
EV006034
Flexible
FALSE
Length
1000
Model
EV000880
Rated current In
400

Busbar designed for use in electrical distribution systems and is compatible with PrismaSeT P and PrismaSeT G enclosures. 3-pole insulated busbar from Linergy BW. Busbar has a rated operational current of 400A and a rated short-time withstand current of 20 kA. Busbar is also rated for a peak withstand current of 52.5kA. The busbar is 1000mm long. It is connected using M6 threaded holes with a connection pitch of 25mm.
