СКУ: XB7NG21
Превключвател с ключ 2-поз. 1NO
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Type of electric connection
EV000415
-
With light source
FALSE
-
Spring-return
FALSE
-
Hole diameter
22.5
-
Material front ring
EV000139
-
Switching function latching
TRUE
-
With front ring
TRUE
-
Suitable for illumination
FALSE
-
Colour front ring
EV000206
-
Type of control element
EV000175
-
Number of switch positions
2
-
Colour button
EV000206
-
Degree of protection (NEMA)
EV007990
-
Degree of protection (IP)
EV008925
-
Number of contacts as normally closed contact
-
Number of contacts as change-over contact

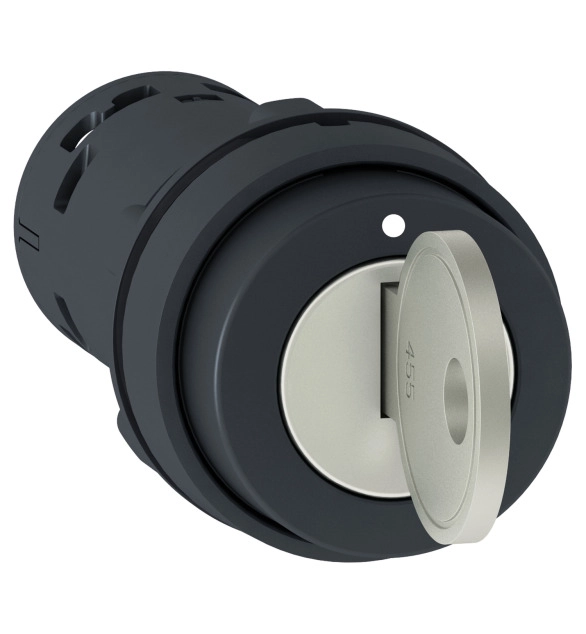

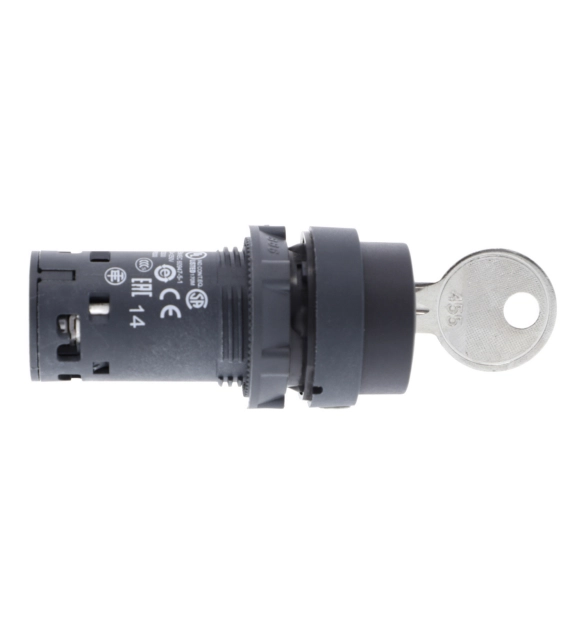

This Harmony XB7, monolithic black key selector switch (key no.455) has 2 positions, operates with a stay-put mechanism with key withdrawal on the left position and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It secures the machine and system operation with a key, only available to authorized operators.
