Превключвател разединител iSW-NA - 1P + N - 40 A | Spark & Co
  • 3D
|

СКУ: A9S70640

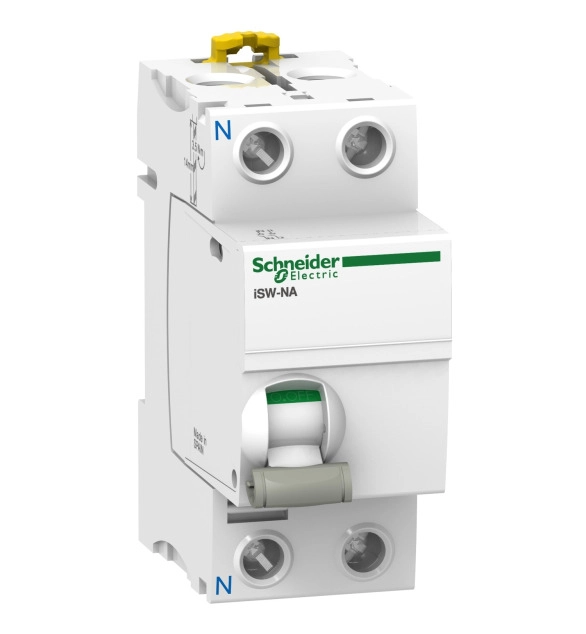

Превключвател разединител iSW-NA - 1P + N - 40 A

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Number of poles
    2
  • Width in number of modular spacings
    2
  • Rated current
    40
  • Voltage type
    EV000460
  • Rated voltage
    240
  • With signal lamp
    FALSE
  • Imprint/indication
    EV000494
  • Number of contacts as normally open contact
    2
  • Colour calotte
    EV000202
  • Forced segregation (according to DIN VDE 0113)
    TRUE
  • Switching function
    EV000397
  • Rated switching capacity
    5
  • Min. rated voltage
    230
  • Number of contacts as normally closed contact
  • Number of contacts as change-over contact
  • Built-in depth
    74.5
  • Short-circuit breaking capacity (Icw)
    0.8

This Acti9 iSW-NA is a modular and reliable switch disconnector. it is a 2P, rated current is 40A and operating voltage is 230VAC to 240VAC. Electrical endurance goes up to 15000 cycles, and Mechanical endurance goes up 20000 cycles. The operating temperature is -35°C to +70°C. The storage temperature is -40°C to +85°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 85mm x (D) 74mm. This switch disconnector is used for control and isolation. This product is compliant with EN/IEC 60947-3.
