Превключвател Актуатор, SpaceLogic KNX, 16 AX ,1 gang, вграден монтаж, 3 бинарни входа, KNX secure | Spark & Co
  • 3D
|

СКУ: MTN6003-0011

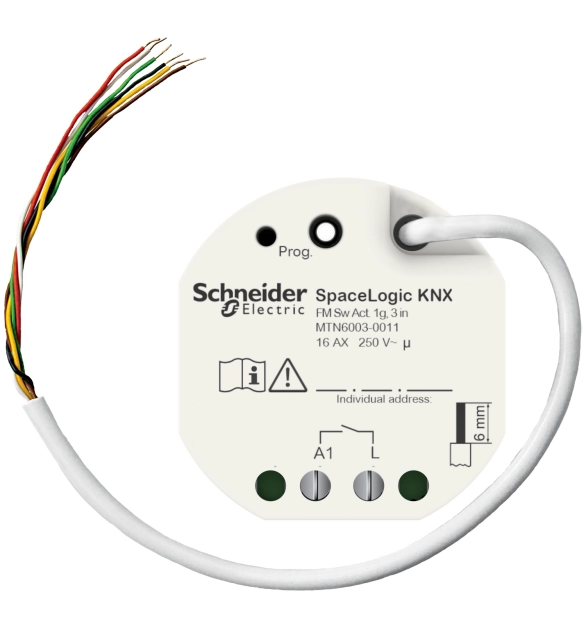

Превключвател Актуатор, SpaceLogic KNX, 16 AX ,1 gang, вграден монтаж, 3 бинарни входа, KNX secure

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Rated current
    16
  • With LED indication
    TRUE
  • Rated operating voltage
    230
  • Bus system KNX radio
    FALSE
  • Bus system Powernet
    FALSE
  • Mounting method
    EV009726
  • Bus system LON
    FALSE
  • Bus system radio frequent
    FALSE
  • Other bus systems
    EV000494
  • Radio frequent bidirectional
    FALSE
  • With bus connection
    TRUE
  • Bus system KNX
    TRUE
  • Min. depth of built-in installation box
    50
  • Bus module detachable
    FALSE
  • Suitable for C-load
    TRUE
  • Number of digital inputs
    3
  • Different phases connectable
    FALSE
  • Local operation/hand operation
    FALSE
  • Max. switching current
    16
  • Modular expandability
    FALSE
  • Max. switching power
    2500
  • Output power
    2500
  • Max. number of switching contacts
    1
  • Max. switching power LED
    400

This Schneider Electric Space.Logic KNX device is a capacitive, halogen lamps, incandescent lamps, low voltage halogen lamp with wire-wound transformer device and is a switch actuator operating by KNX bus type. Its matching mounting box can be recessed into the surface of the wall with flush type. 16.0 is the rated current. In addition, the rated operational voltage of this device is 230V and the input function is operating by signal voltage (SELV). 1 is the number of contacts. It has a network frequency of 50/60 Hz. The IP rating of this device is IP20. This switch actuator is SVHC (substances of very high concern) free as well as heavy metal free, taking care of the environment and your health. Schneider Electric switch actuator is mercury free.
