СКУ: XB7ND25
Превключвател-2поз. NO+NC
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Type of electric connection
EV000415
-
Number of contacts as normally closed contact
1
-
Type of control element
EV000092
-
With light source
FALSE
-
Spring-return
FALSE
-
Hole diameter
22.5
-
Material front ring
EV000139
-
Switching function latching
TRUE
-
With front ring
TRUE
-
Suitable for illumination
FALSE
-
Colour front ring
EV000206
-
Number of switch positions
2
-
Colour button
EV000206
-
Degree of protection (NEMA)
EV007990
-
Degree of protection (IP)
EV008925
-
Number of contacts as change-over contact

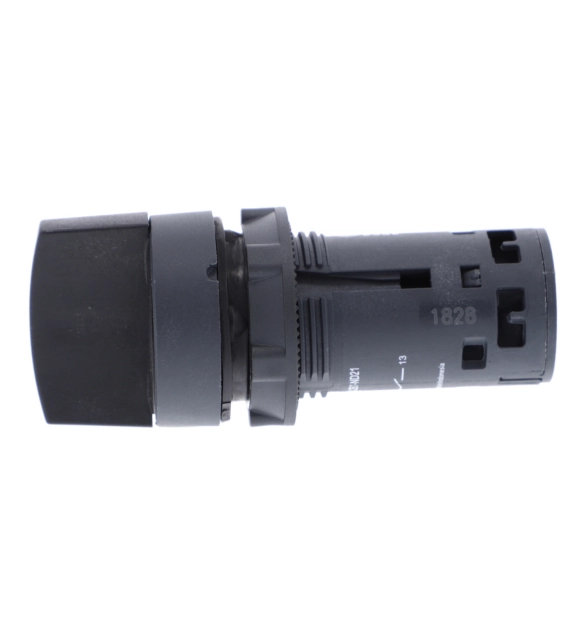

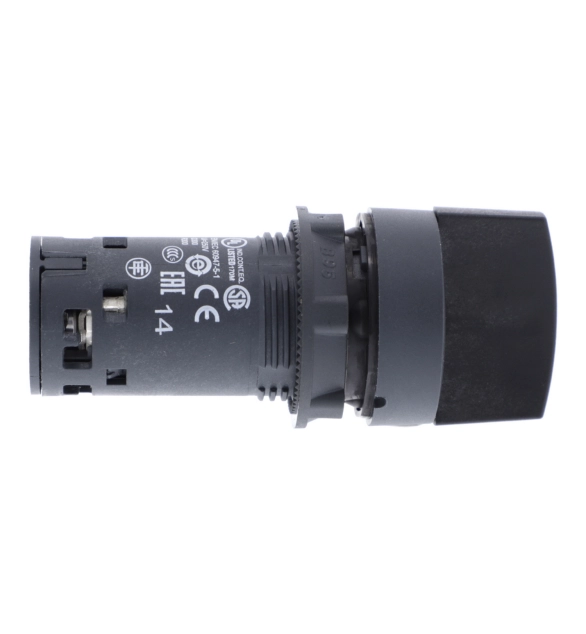

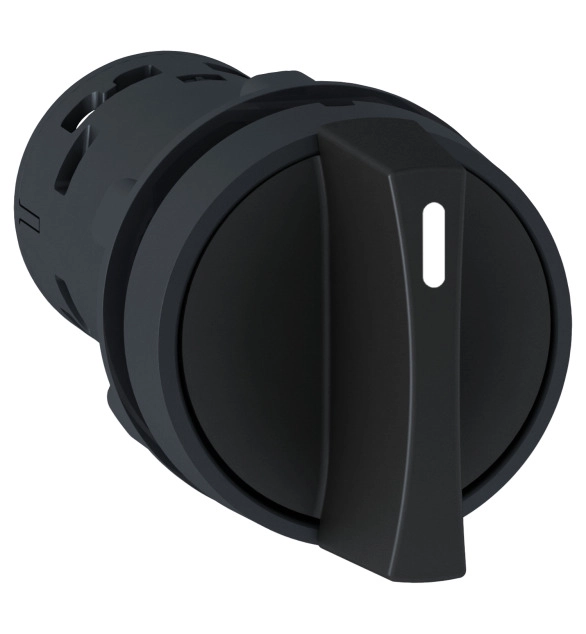

This Harmony XB7, monolithic black selector switch has 2 positions, operates with a stay-put mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to give your machine multiple different inputs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
