СКУ: LV563552

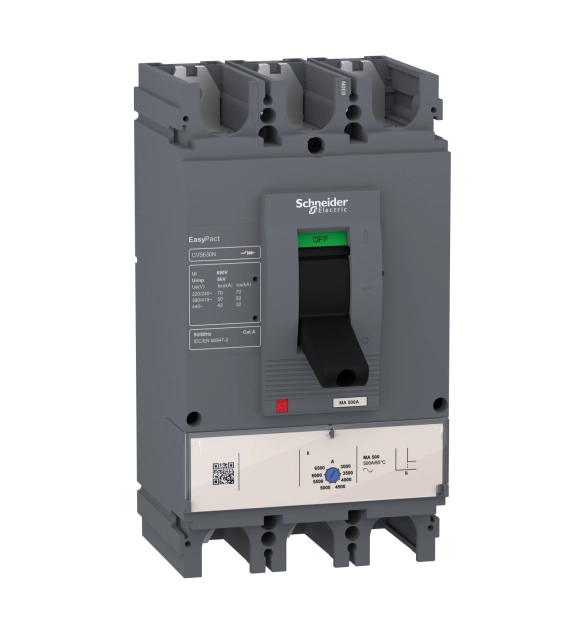

прекъсвач EasyPact CVS630N, 50 kA, 415 VAC, 500 A номинален, магнитно MA изключващо у-во, 3P 3d
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Device construction
EV009211
-
Width
140
-
Degree of protection (IP)
EV006415
-
Rated permanent current Iu
630
-
Type of control element
EV000154
-
Rated operating voltage
220
-
Depth
110
-
Switch off technique
EV006116
-
With thermal protection
FALSE
-
Rated short-circuit breaking capacity lcu at 400 V, AC
50
-
Phase failure sensitive
FALSE
-
Height
255
-
With integrated under voltage release
TRUE
-
With integrated auxiliary switch
TRUE
-
Adjustment range undelayed short-circuit release
3000
EasyPact CVS630N is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds an electronic ETS 2.3 trip unit, with 630A rating. ETS 2.3 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. EasyPact CVS630N is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
