СКУ: LV510554

Прекъсвач, EasyPact CVS100N, 50kA, 415VAC, ETS 2.2, 40A, 3P 3d

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Motor drive integrated
    FALSE
  • Motor drive optional
    FALSE
  • Rated permanent current Iu
    40
  • Degree of protection (IP)
    EV006415
  • Rated voltage
    415
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    50
  • Complete device with protection unit
    TRUE
  • Adjustment range short-term delayed short-circuit release
    0.02
  • With integrated under voltage release
    TRUE
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Number of auxiliary contacts as change-over contact

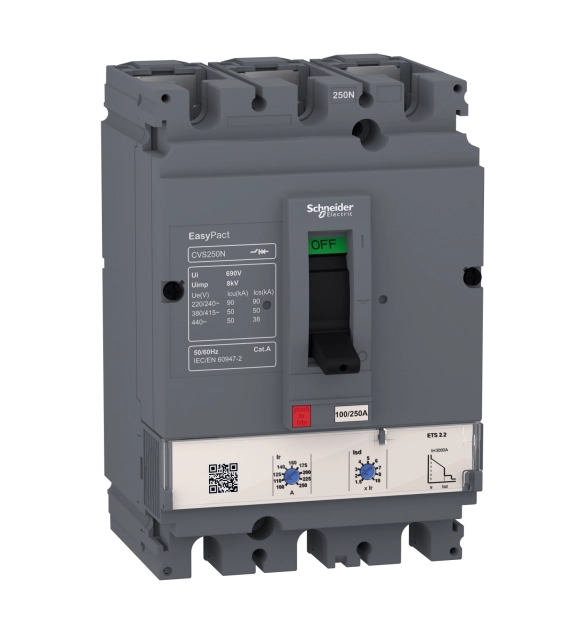

This device is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a ETS 2.2 electric trip unit. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS250N is compliant with international standards (IEC 60947, EN 60947, CCC, CB).
