СКУ: LV510312
прекъсвач EasyPact CVS100B, 25kA, 415VAC, 32A термомагнитно изключващо у-во, 4P 3d
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Device construction
EV009211
-
Motor drive integrated
FALSE
-
Motor drive optional
FALSE
-
Degree of protection (IP)
EV006415
-
Rated permanent current Iu
100
-
Type of control element
EV000421
-
DIN rail (top hat rail) mounting optional
FALSE
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With switched-off indicator
TRUE
-
With integrated under voltage release
FALSE
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
25
-
Number of auxiliary contacts as change-over contact
-
Adjustment range undelayed short-circuit release
300
-
Complete device with protection unit
TRUE
-
Overload release current setting
-
Rated voltage
440

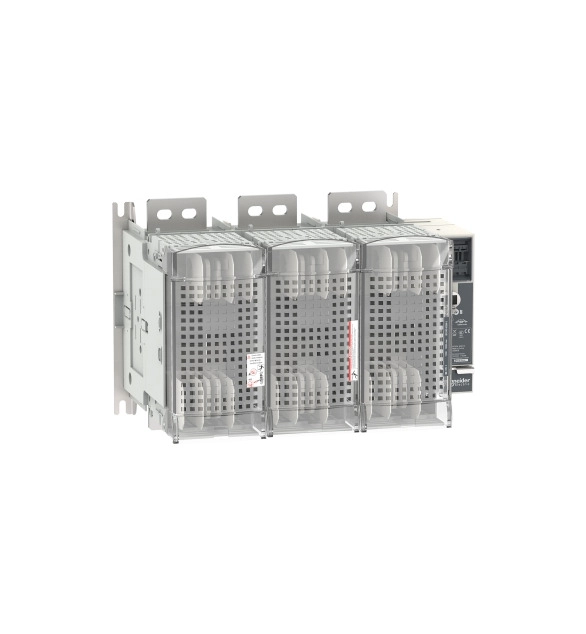

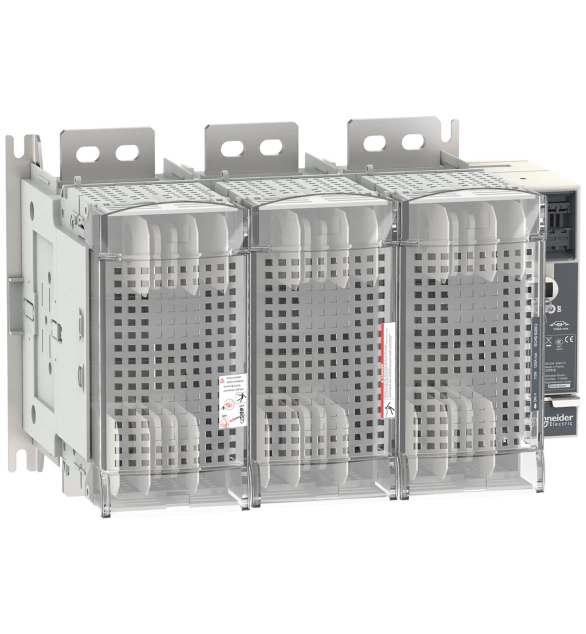

This device FuPacT GSD1250 is a 3 poles switch disconnector fuse with front and right side control. It is dedicated to buildings, infrastructure and Industrial plants. It protects against short-circuits and overloads on distribution circuits. For AC22B utilisation categories, the rated operational current is 1250A at 690VAC. For AC23B utilisation categories, the rated operational current is 1250A at 415VAC. FuPacT GSD1250 has to be used with DIN fuses with blade size 4. It can be equipped with an external front or right side mounting rotary handle. Extended rotary handles can be used with different shaft dimensions (200mm, 320mm or 400mm). FuPacT GSD1250 in 3 poles version can also be equipped with a variety of accessories and auxiliaries such as auxiliary contacts, external neutral modules and terminal shields. It complies with IEC 60947-1 and IEC 60947-3 standards.
