СКУ: LV510311
прекъсвач EasyPact CVS100B, 25kA, 415VAC, 25A термомагнитно изключващо у-во, 4P 3d
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Max. rated operation voltage Ue AC
690
-
Number of poles
3
-
Version as safety switch
FALSE
-
Degree of protection (IP), front side
EV006405
-
Motor drive integrated
FALSE
-
Suitable for floor mounting
FALSE
-
Motor drive optional
FALSE
-
Version as main switch
TRUE
-
Version as emergency stop installation
TRUE
-
Suitable for front mounting
FALSE
-
Rated permanent current Iu
1250
-
Cable entry
EV000154
-
Equipped with connectors
FALSE
-
With error protection
FALSE
-
Rated short-time withstand current lcw
100
-
Suitable for fuses
EV008596
-
Type of control element
EV000154
-
Suitable for busbar mounting
FALSE
-
Position control element
EV007926
-
Rated operation power at AC-23, 400 V
750

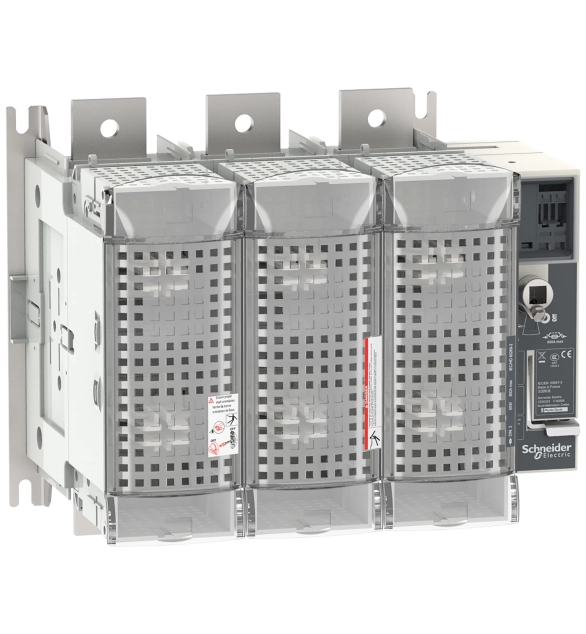

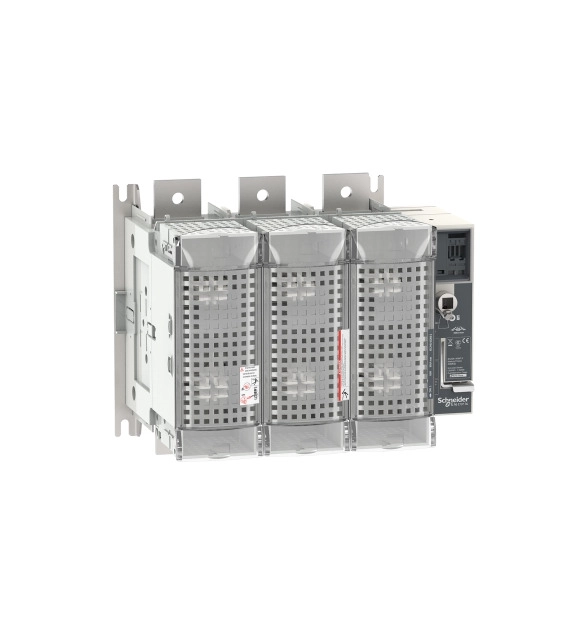

This device FuPacT GSD800 is a 3 poles switch disconnector fuse with front and right side control. It is dedicated to buildings, infrastructure and Industrial plants. It protects against short-circuits and overloads on distribution circuits. For AC22B utilisation categories, the rated operational current is 800A at 690VAC. For AC23B utilisation categories, the rated operational current is 800A at 415VAC. FuPacT GSD800 has to be used with DIN fuses with blade size 3. It can be equipped with an external front or right side mounting rotary handle. Extended rotary handles can be used with different shaft dimensions (200mm, 320mm or 400mm). FuPacT GSD800 in 3 poles version can also be equipped with a variety of accessories and auxiliaries such as auxiliary contacts, external neutral modules and terminal shields. It complies with IEC 60947-1 and IEC 60947-3 standards.
