СКУ: LV563329

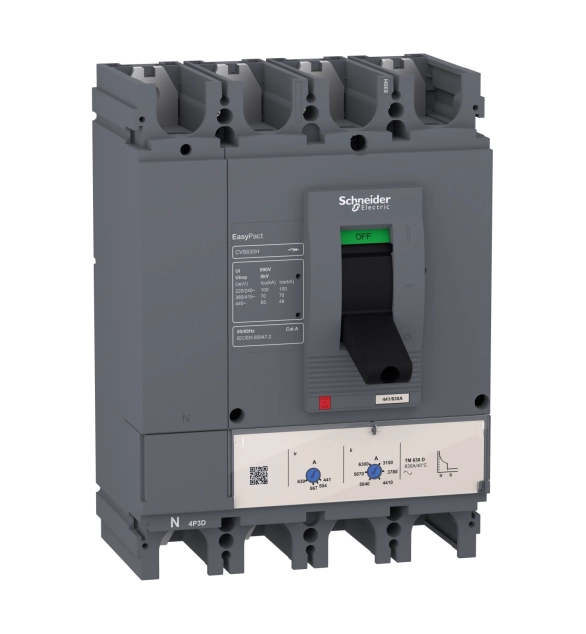

Прекъсвач EasyPact CVS - CVS630H - 4P/3d
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Device construction
EV009211
-
Motor drive integrated
FALSE
-
Motor drive optional
FALSE
-
Degree of protection (IP)
EV006415
-
Number of poles
4
-
Rated permanent current Iu
630
-
Type of control element
EV000421
-
DIN rail (top hat rail) mounting optional
FALSE
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With switched-off indicator
TRUE
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
70
-
With integrated under voltage release
FALSE
-
Complete device with protection unit
TRUE
-
Rated voltage
440
-
Number of auxiliary contacts as change-over contact
-
Overload release current setting
-
Adjustment range undelayed short-circuit release
EasyPact CVS630H is a 4 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 415VAC 50/60Hz. This product embeds a 630A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. EasyPact CVS630H is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-4).
