Прекъсвач, ComPacT NS1250H, 70kA at 415VAC, 4P, фиксиран, ръчно управление, MicroLogic 5.0 контролен блок, 1250A

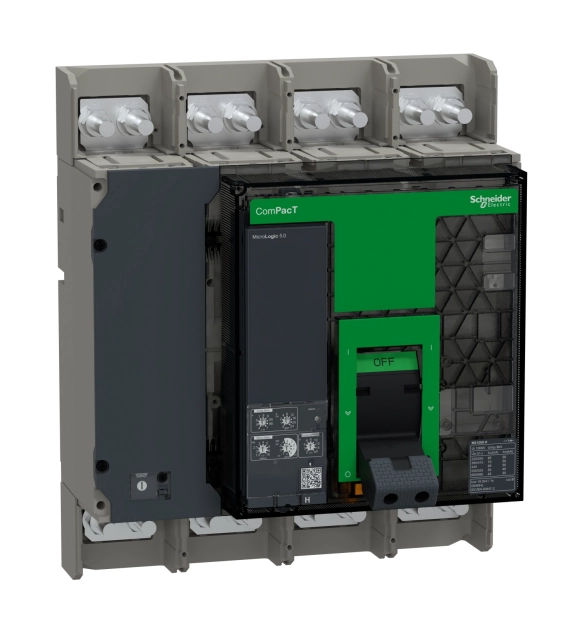

This product is a 4 poles ComPacT NS1250H circuit breaker. This device is in fixed mounting mode and is manually operated. This circuit breaker embeds a MicroLogic 5.0 control unit, and is equipped with front connections at top side and bottom side. ComPacT NS is designed to optimize space and breaking capacity, it is an optimal choice for all standard and specific applications. The operational current is 1250A. The operational voltage is 690VAC 50/60Hz. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The circuit breaker can be manually operated with its toggle. The electronic MicroLogic 5.0 control unit has a 1250A rating. MicroLogic 5.0 control unit provides an overload protection (true rms and adjustable long time protection). MicroLogic 5.0 control unit provides adjustable short-circuit protections (rms short time and instantaneous protections). MicroLogic 5.0 control unit provides adjustable long time, short time and instantaneous protections (ANSI codes 49/51/50). The circuit breaker is equipped with front connections terminals at top and bottom sides. This product comes with a variety of optional functions and accessories. The dimensions (without the toggle) are 327mm (Heigh) x 280mm (Width) x 147mm (Depth). It is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS is part of the global Schneider Electric Environmental Program.
