СКУ: GB2DB06
Прекъсвач 2P PROT 1A
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Concurrently switching neutral conductor
FALSE
-
Width in number of modular spacings
2
-
Frequency
50
-
Number of poles (total)
2
-
Number of protected poles
2
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50
-
Flush-mounted installation
FALSE
-
Explosion-proof
FALSE
-
Rated voltage
415
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50
-
Voltage type
EV000460
-
Over voltage category
3
-
Ambient temperature during operating
-20
-
Pollution degree
2
-
Rated impulse withstand voltage Uimp
4
-
Release characteristic
EV000154
-
Additional equipment possible
FALSE
-
Connectable conductor cross section solid-core
0.75
-
Current limiting class
3
-
Connectable conductor cross section multi-wired
0.75
-
Rated current
1
-
Built-in depth
78
-
Rated insulation voltage Ui
415

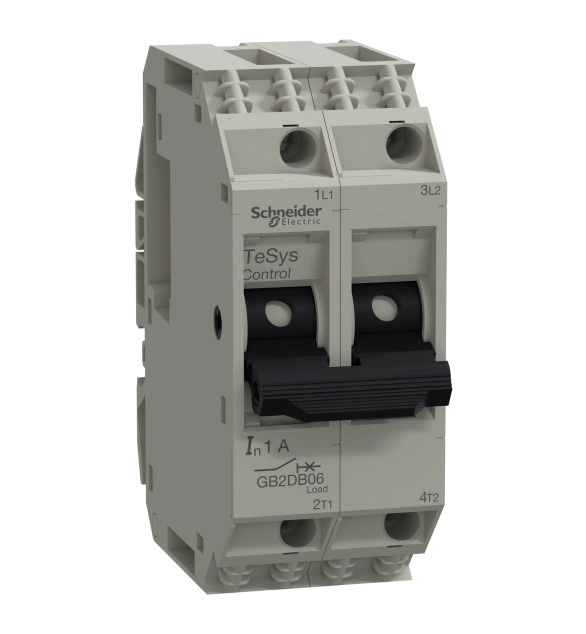

TeSys GB circuit breaker, 2 poles (2P), 1A/415V, for the protection of industrial equipment control circuits. It provides thermal-magnetic protection with a magnetic tripping level at 14A (13 In) and breaking capacity Icu 50kA at 415V. It can also be used for protection of DC loads up to 1A/48V DC-13 with a breaking capacity Icu 1.5kA at 24V. Compact device (30mm wide), mounting on 35mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 3 units. It conforms to IEC 60947-1 and IEC 60947-2.
