СКУ: 19082

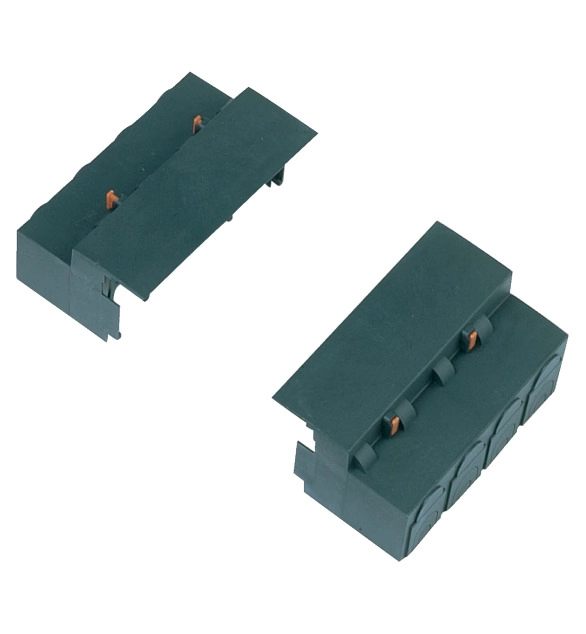

Предпазни капаци за клеми, 3 полюса
-
Brand
Schneider Electric
-
Accessory
TRUE
-
Spare part
FALSE
-
Type of accessory/spare part
EV008943
This Acti9 MX+OF electrical auxiliary is a shunt trip release device with open/close auxiliary contact. It is dedicated to NG125. This device includes an open/close contact OF to indicate the open or closed position of the circuit breaker. It is provided with a self-interrupting contact. The width in 9mm pitches is 2. The product trips the associated device when it is powered on. The operating frequency is between 50Hz and 60Hz. It also works on direct current. The In rated current is from 0.1A to 6A at 240VAC, 0.1A to 3A at 415VAC, and 0.1A to 1A at 130VDC. The Uc control circuit voltage is from 230VAC…415VAC and from 110VDC…130VDC. The Ue rated operational voltage is 200VAC to 240VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on a DIN rail for modular installation. The dimensions are (W) 18mm x (H) 106mm x (D) 78mm. The product weight is 0.129kg. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C. This product complies with EN/IEC 60947-2 standard.
