СКУ: LV480856
ПредпазителISFL250 WITH ELECTRONIC FUSE
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Version as emergency stop installation
FALSE
-
Max. rated operation voltage Ue AC
690
-
Number of poles
3
-
Degree of protection (IP), front side
EV006405
-
Motor drive integrated
FALSE
-
Suitable for floor mounting
FALSE
-
Motor drive optional
FALSE
-
Version as main switch
TRUE
-
Rated permanent current Iu
250
-
Cable entry
EV000154
-
Suitable for busbar mounting
TRUE
-
Suitable for fuses
EV003993
-
Type of control element
EV000154
-
Version as safety switch
TRUE
-
Position control element
EV007926
-
Suitable for front mounting
TRUE
-
Equipped with connectors
TRUE
-
With error protection
TRUE
-
Conditioned rated short-circuit current Iq
120
-
Rated short-time withstand current lcw
15

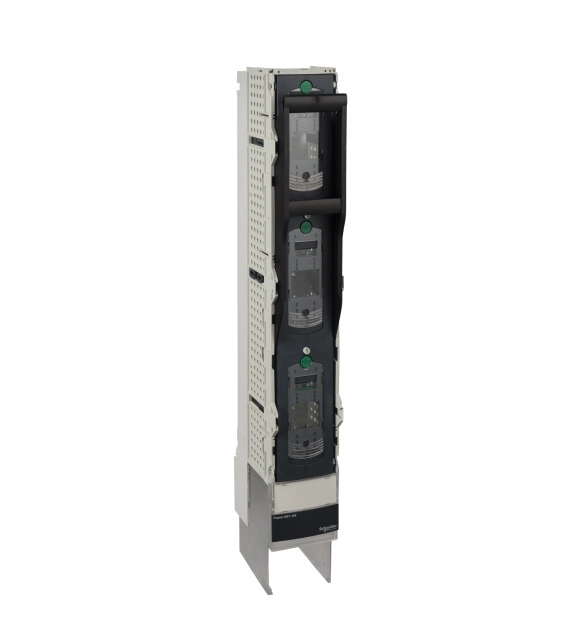

This device FuPacT ISFL250 is a 3 poles fuse switch disconnector for direct connection to 185mm busbars. FuPacT ISFL is an efficient vertical fuse switch disconnectors with compact form and a modular system. Thanks to its size, FuPacT ISFL doesn't require extra space for current transformer installation. Its interface is standardized for all types of measurement devices. The rated operational current is 250A at 690VAC for AC21B utilisation category, 250A at 500VAC for AC22B, and 250A at 415VAC for AC23B. Fuse link type is DIN NH01. The power circuit is connected either directly to the 185 mm busbars or using a hook-on connection. It complies with IEC 60947-1 and IEC 60947-3 standards.
