СКУ: METSEEM3555

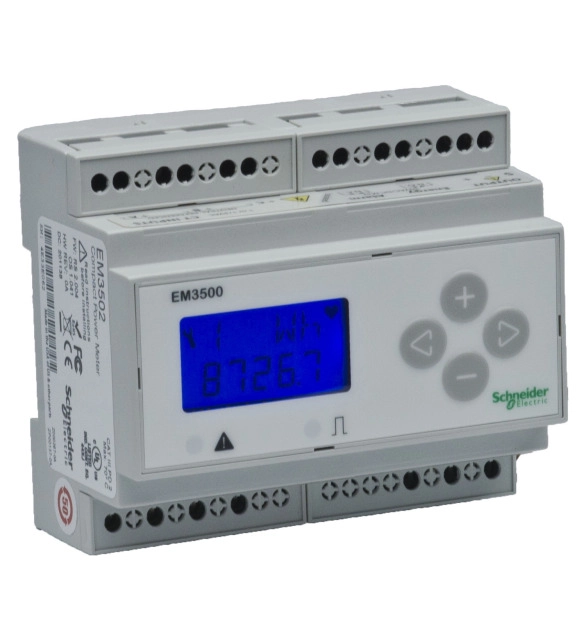

PowerLogic EM3500 DIN rail meter - Modbus 4 quadrant - current transformer
-
Brand
Schneider Electric
-
Voltage type
EV000509
-
Supporting protocol for LON
FALSE
-
Width
102
-
Supporting protocol for Modbus
TRUE
-
Model
EV010943
-
Pulse output
EV003671
-
Measured value memory
FALSE
-
Calibrated
FALSE
-
Pole type
EV011974
-
Nominal current (In)
5
-
Height
112
-
Frequency measurement
TRUE
-
Max. current (Imax)
8.5
-
Effective power
TRUE
-
Power factor
TRUE
-
Min. value storage
TRUE
-
Wth communication interface M-Bus
FALSE
-
Apparent power
TRUE
-
Measuring range
35
-
Top arbour measurement
TRUE
-
With communication interface according to EN 62056-21
FALSE
-
Reactive power
TRUE
-
Mounting method
EV008241
-
With communication interface RS-485
TRUE
-
Accuracy class
0.5
-
Measurement type load profile
TRUE
-
Step angle (cos phi)
FALSE
-
Max. value storage
TRUE
-
Indication
EV004575
-
With communication interface KNX
FALSE
The EM3500 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM35xx models are designed for use with Low Votage Current Transducers 1/3Volt or 1Volt output. Current input from 5A to 32000A, according to the LVCT configuration in the HMI, ANSI C12.20 0.2% accuracy, IEC 62053-22 class 0.2S. The data logging capability protects data in the event of a power failure. Modbus, pulse output, and phase alarms are all provided to suit a wide variety of applications. This model add a bi-directional monitoring feature designed expressly for renewable energy applications. Suitable for a 230V AC network, with a supply voltage range of 90V AC to 300V AC at 50Hz or 60Hz. Compliant with UL508, CSA 22.2 number 14-05 and EN 61010-1. Product dimensions are as follows: width 107 mm, depth 59 mm, height 91 mm.
