СКУ: ABLU3A48100
POWER SUPPLY 48V 10A 3PH UNIVERSAL
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Degree of protection (IP)
EV006405
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Rail mounting possible
TRUE
-
Voltage type of supply voltage
EV000460
-
Modular version
TRUE
-
Suitable for safety functions
TRUE
-
Stabilized
TRUE
-
Secondary voltage adjustable
FALSE
-
Width
65
-
Direct mounting possible
FALSE
-
Short-circuit-proof
FALSE
-
Wall mounting possible
FALSE
-
Height
124
-
Rated supply voltage at AC 50 Hz
100
-
Rated supply voltage at AC 60 Hz
100
-
Output voltage stabilized
FALSE
-
1st secondary output voltage
100
-
Nominal value output current 1
10
-
Max. output current 1
10
-
Power output
480
-
Built-in height
124
-
Built-in width
65
-
Nominal value output voltage 1
48
-
Depth
127.2

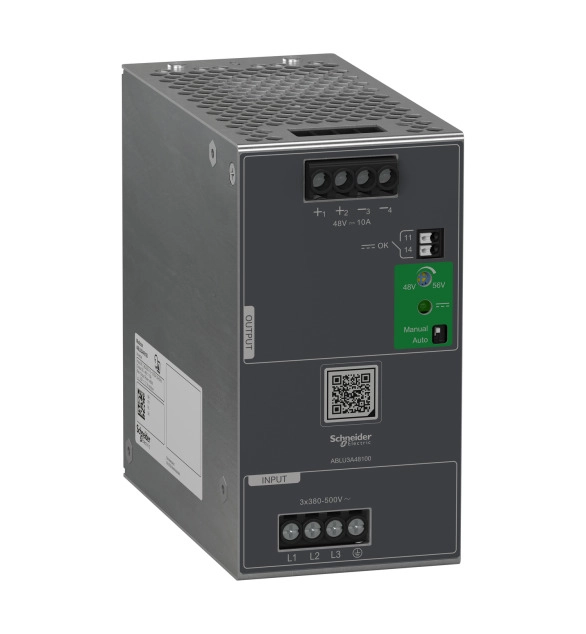

This product is part of the Modicon ABL range, an offer of power supplies for industrial use. It is a regulated switch mode power supply. It has a rated input of 380V to 500V AC, a rated output current of 10A at 48V DC and a rated power output of 480W. It supplies direct current voltage and ensures a protection against overloads and short-circuits with automatic or manual restart. It operates from minus 25 to plus 55degrees celcius and plus 55 to 70degrees celcius with a current derating of 3.3%, at an altitude of less than 2000meters. It measures 124mm high, 65mm wide, and 127.2mm deep. It weighs 1.15kg. It is a power supply for industrial use. It meets CE, CB Scheme, cULus Listed, UL HazLoc Class1Div2, cURus Recognized, RCM, EAC, UKCA, KC. To IEC/EN-UL/CSA 62368-1, IEC/EN-UL/CSA 61010-1/2 standards. GV2ME07 or GV2RT06 circuit breakers are recommanded for its protection. It installs on 35mm DIN rail. It brings energy to your automated systems. Designed with extreme compactness for simple machines and applications.
