СКУ: RPM21P7

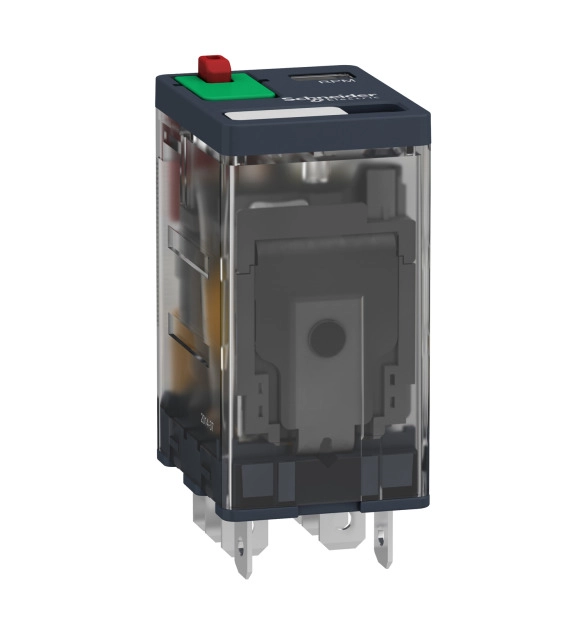

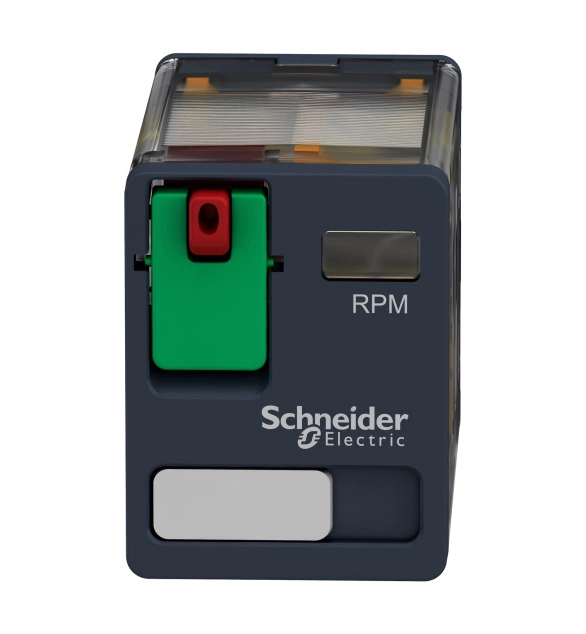

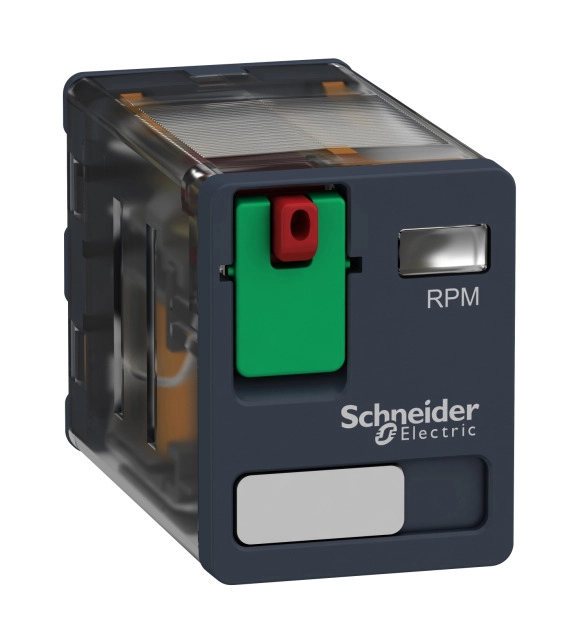

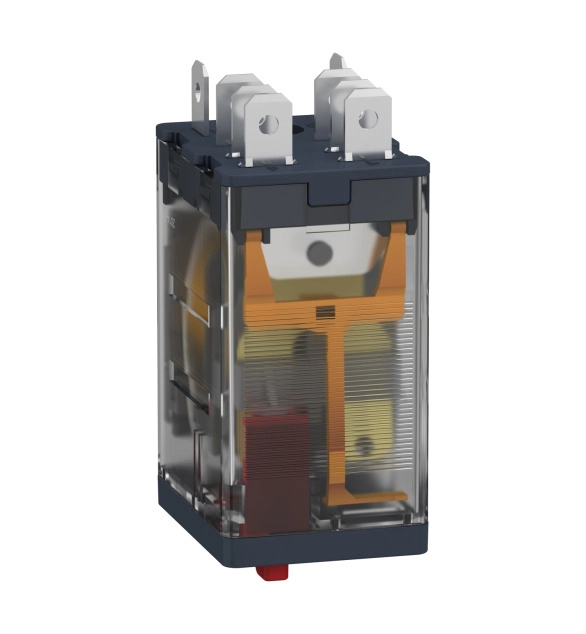

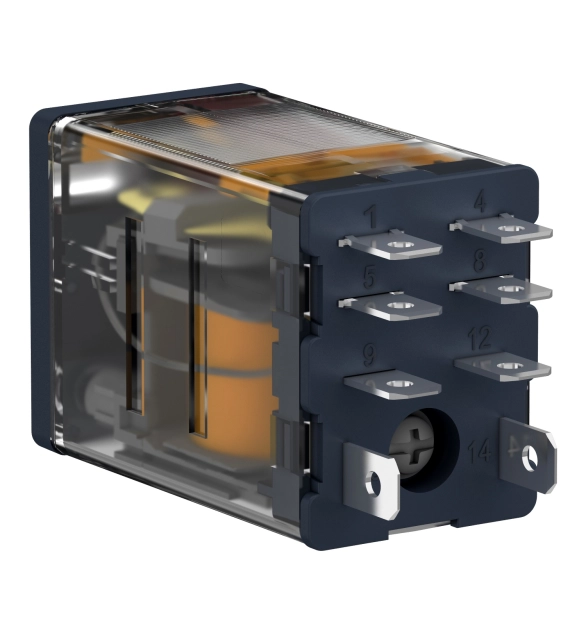

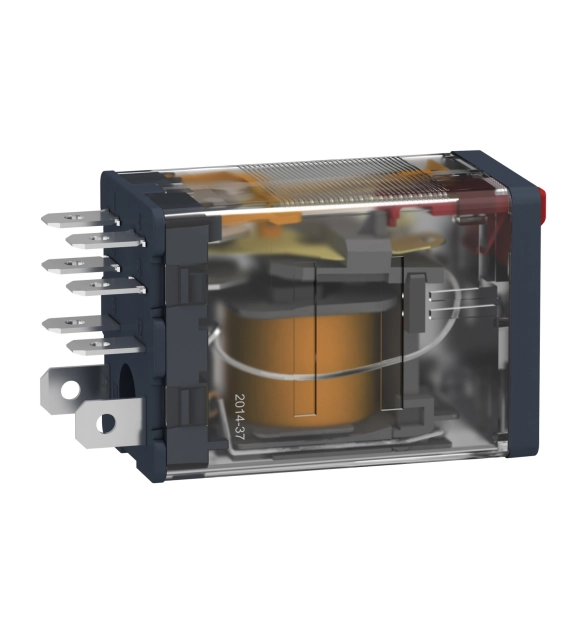

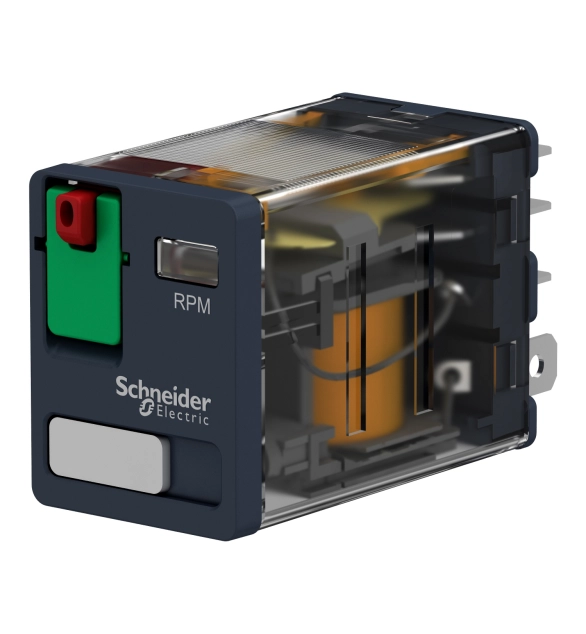

Power relay 15A 2CO lock 230V AC
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000460
-
Degree of protection (IP)
EV006415
-
Width
21
-
Number of contacts as change-over contact
2
-
Rated control supply voltage Us at AC 50HZ
230
-
With LED indication
FALSE
-
Depth
53
-
Rated control supply voltage Us at AC 60HZ
230
-
With detachable clamps
TRUE
-
Drive, switching attitude
EV005821
-
With forced-guided contacts
TRUE
-
Drive, polarization
EV005820
-
Type of switch contact
EV005825
-
Complete with socket
FALSE
-
Material of contact insert
EV000154
-
Material of contact surface
EV000154
-
Material contact
EV000154
-
Type of electric connection
EV000414
-
Nominal current
15
-
Height
27
-
Number of contacts as normally open contact
-
Number of contacts as normally closed contact
This Harmony RPM power plug-in relay has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs).
