СКУ: XVZ02

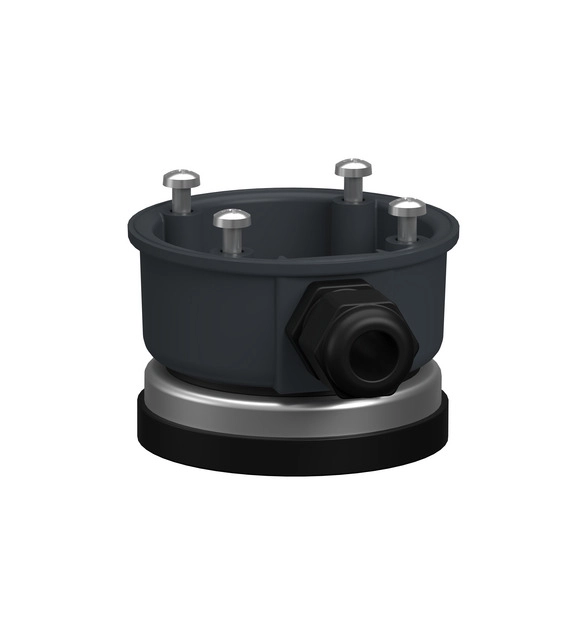

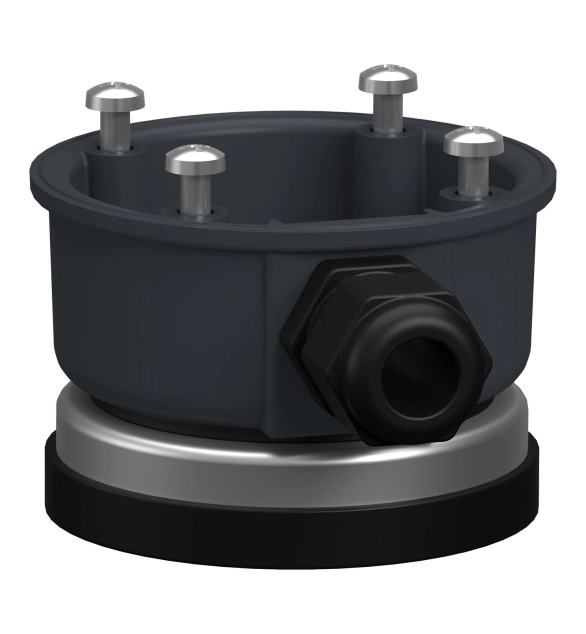

Plastic Fixing Plate with Pole in grey

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Version as reversing switch
    FALSE
  • Conditioned rated short-circuit current Iq
    10
  • Max. rated operation voltage Ue AC
    690
  • Number of poles
    3
  • Voltage release optional
    FALSE
  • Device construction
    EV009211
  • Version as maintenance-/service switch
    FALSE
  • Version as safety switch
    FALSE
  • Rated operating voltage
    690
  • Suitable for front mounting 4-hole
    TRUE
  • Suitable for distribution board installation
    FALSE
  • Number of switches
    1
  • Motor drive integrated
    FALSE
  • Suitable for intermediate mounting
    FALSE
  • Suitable for floor mounting
    FALSE
  • Motor drive optional
    FALSE
  • Rated operation power at AC-3, 400 V
    7.5
  • Rated permanent current Iu
    32
  • Rated short-time withstand current lcw
    0.384
  • Rated operation power at AC-23, 400 V
    11
  • Rated permanent current at AC-21, 400 V
    32
  • Rated permanent current at AC-23, 400 V
    21.8
  • Suitable for front mounting centre
    FALSE
  • Version as main switch
    TRUE
  • Interlockable
    TRUE
  • Degree of protection (IP), front side
    EV006421
  • Version as emergency stop installation
    TRUE
  • Colour control element
    EV000233
  • Type of control element
    EV009477
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally open contact

This 1/2'' NPT adapter is part of the Harmony XVB7, XV6, and XV4 ranges, featuring modular tower lights designed for easy customer assembly. It is designed for easy mounting of a base module with bottom cable entry (a gasket and fixing screws are included). This accessory is an adapter for diameter 25 mm tubes. It features a 1/2-inch thread. It is impact, dust, water, and vibration resistant thanks to its IP66 rating, making it ideal for operation in harsh environments. Made from silver-colored steel, the 1/2'' NPT adapter measures 46.5mm high, has a diameter of 27mm, and weighs 101g. The Harmony XVB7 modular tower lights are visual or audible signaling units used for indicating, throughout 360°, the various states of a machine or installation. To simplify mounting, fixing plates, tubes, and brackets are available for separate purchase.
