СКУ: SSP1A4125M7T
PH relay 125A zero therm 90 280V-48 660V
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000460
-
Number of phases
1
-
Modular version
FALSE
-
Operating voltage
48
-
Switching at zero-crossing
FALSE
-
Rated control supply voltage Us at AC 50HZ
90
-
Rated control supply voltage Us at AC 60HZ
90
-
Rated operation current Ie at AC-51
125
-
Rated operation current Ie at AC-1
125
-
Rated operation current Ie at AC-53a
125
-
Rated operation current Ie at AC-53b
125
-
Rated operation current Ie at AC-3
125

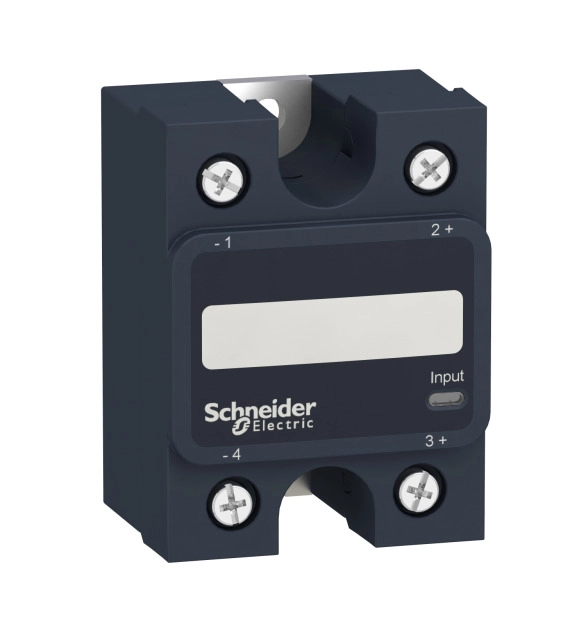

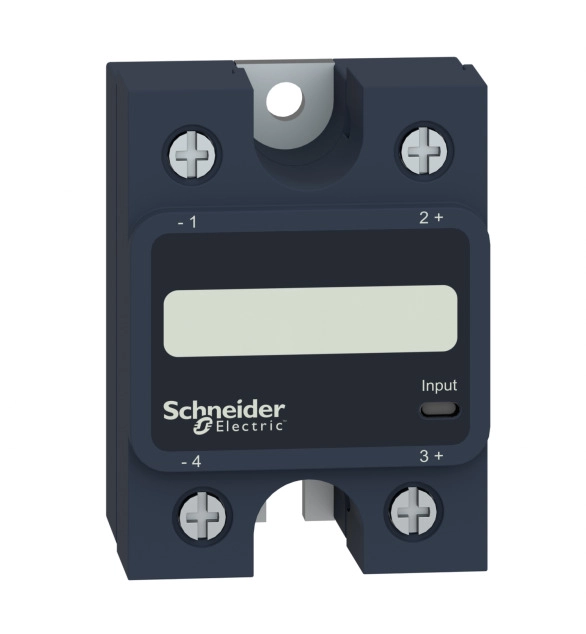

This Harmony SSP solid state panel mount single-phase relay is rated 125A, is controlled with a 90V to 280V AC input, has a rated load voltage of 48V to 660V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts.
