СКУ: XB4BP21EX

PB project black boot unmark ATEX

  • Brand
    Schneider Electric
  • Number of contacts as normally open contact
    1
  • Type of electric connection
    EV000415
  • Colour front ring
    EV000291
  • Hole diameter
    22.5
  • Construction type lens
    EV000167
  • With front ring
    TRUE
  • Suitable for illumination
    FALSE
  • Switching function latching
    FALSE
  • Degree of protection (NEMA)
    EV000154
  • Number of contacts as normally closed contact
  • Number of contacts as change-over contact
  • Type of button
    EV003619
  • Degree of protection (IP)
    EV006422
  • Number of command positions
    1
  • Spring-return
    TRUE
  • Material front ring
    EV000914
  • Colour button
    EV000235

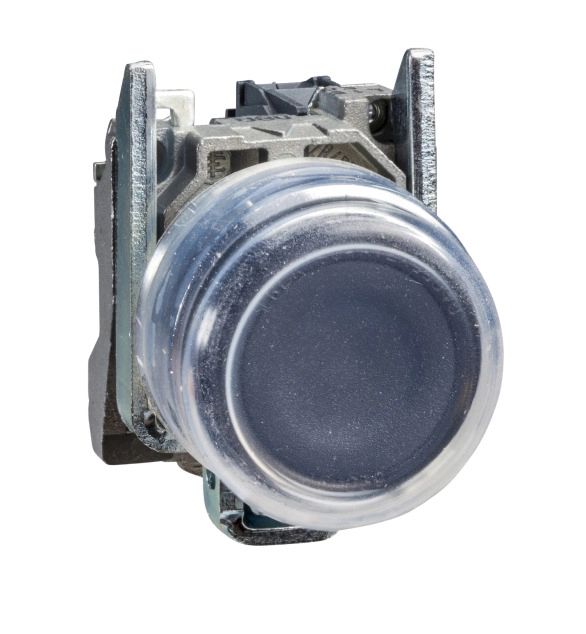

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This black pushbutton has a circular head shape with a booted, clear silicon flush push. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22. This pushbutton with booted clear silicon provides an ergonomic and visual interface for controlling machines. It comes with 1 NO contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 22mm diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
