СКУ: XB4BP21
PB project black boot unmark
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Type of electric connection
EV000415
-
Colour front ring
EV000291
-
Hole diameter
22.5
-
Construction type lens
EV000167
-
With front ring
TRUE
-
Suitable for illumination
FALSE
-
Switching function latching
FALSE
-
Type of button
EV003619
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Number of command positions
1
-
Spring-return
TRUE
-
Material front ring
EV000914
-
Colour button
EV000206
-
Number of contacts as normally closed contact
-
Number of contacts as change-over contact

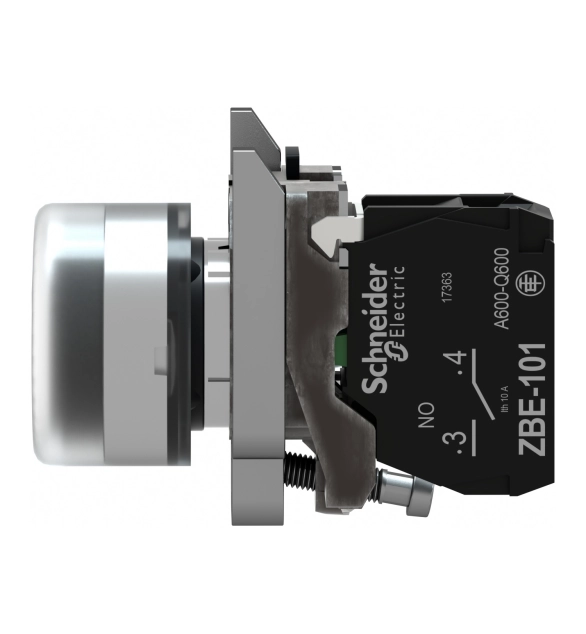

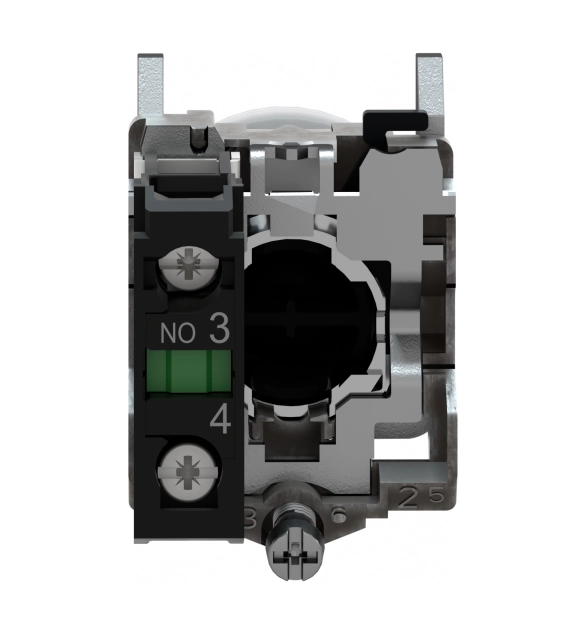

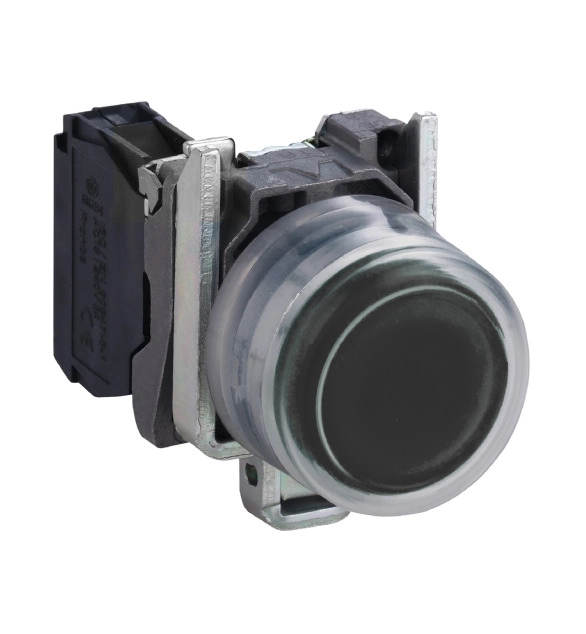

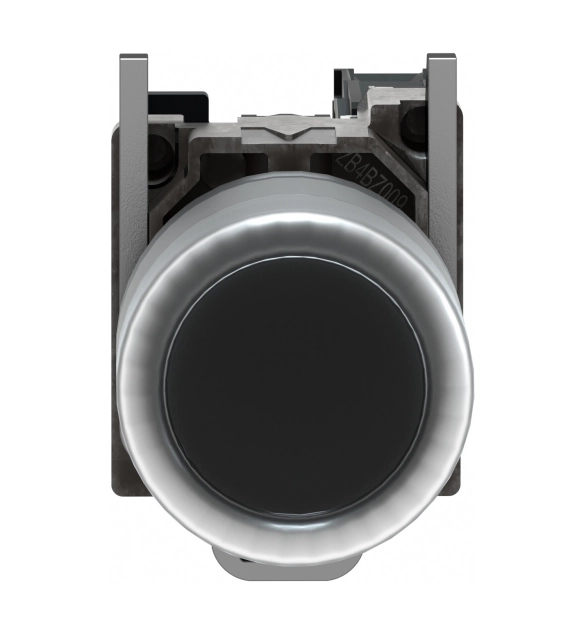

This Harmony XB4 modular black push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
