СКУ: PAS600

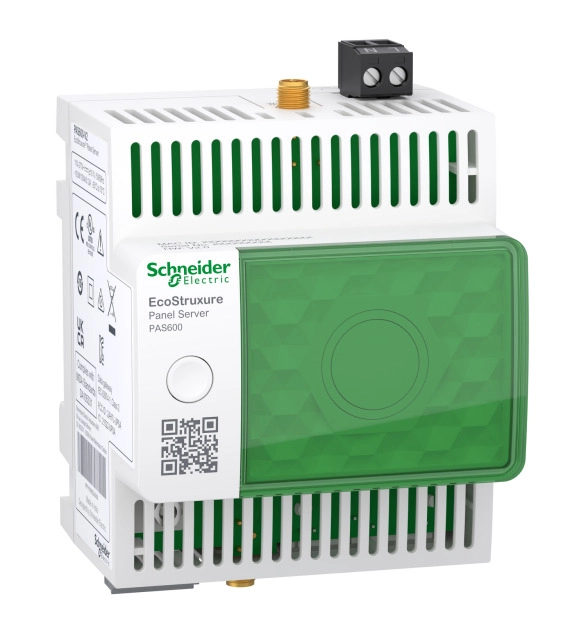

Панел сървър 110-277V AC/DC
-
Brand
Schneider Electric
-
Model
EV000154
-
Width in number of modular spacings
4
-
Degree of protection (IP)
EV006410
-
Voltage type
EV000509
-
Number of channels
1
-
With LED indication
TRUE
-
Updateable
TRUE
-
Radio interface
TRUE
-
Operating voltage
110
-
IR interface
FALSE
-
Bus system radio frequent
TRUE
-
Bus system KNX radio
FALSE
-
Bus system Powernet
FALSE
-
Max. number of devices per channel
128
-
Web-Server
TRUE
-
Visualization
FALSE
-
Demounting protection
FALSE
-
Mounting method
EV009726
-
Other bus systems
EV000154
-
Bus system KNX
FALSE
-
Bus system LON
FALSE
-
Power consumption
3
-
Radio frequent bidirectional
TRUE
-
Protocol
EV006511
-
Provider dependent
FALSE
EcoStruxure Panel Server is a gateway, providing connection of wired or wireless smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambiant, Power Tag control and others. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including Power Meters and Protection devices from Schneider-Electric and third party. User friendly web-pages offer first-level of monitoring of measurements of all the connected devices including log of all alarms. Simple troubleshooting of the system through embedded web-pages with advanced diagnostic information and logs. Easy commissioning through embedded web-pages or with EcoStruxure Power Commission on your laptop, or mobile, that will offer commissioning reports and advanced features. Product dimensions are as follows: width 72 millimeters, depth 70,2 millimeters and height 93 millimeters. From 110 to 277 VAC/DC 50-60Hz power supply. -25°C to +70°C Operating temperature. Up to 93% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC62974-1, Marine certification, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IP40 front face nose and IP30 on others faces. Two 10/100 Base-T Ethernet RJ45 connectors. Modbus RS485 open-style connector. Direct cellular connection through external LTE router connected through Ethernet or Wi-Fi. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Energy Hub, Asset Advisor and Resource Advisor.
