СКУ: K10F003UCH
Пакетен превключвател
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Suitable for distribution board installation
FALSE
-
Suitable for floor mounting
FALSE
-
Type of control element
EV004095
-
Number of poles
4
-
With retraction in 0-position
FALSE
-
Complete device in housing
TRUE
-
With zero (off) position
FALSE
-
Material housing
EV000154
-
Degree of protection (NEMA), front side
EV000154
-
Degree of protection (IP), front side
EV008925
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as change-over contact
-
Number of auxiliary contacts as normally open contact
-
Rated permanent current Iu
10
-
Model
EV000398
-
Suitable for front mounting
TRUE
-
Suitable for intermediate mounting
TRUE
-
Rated operation current Ie at AC-3, 400 V
2

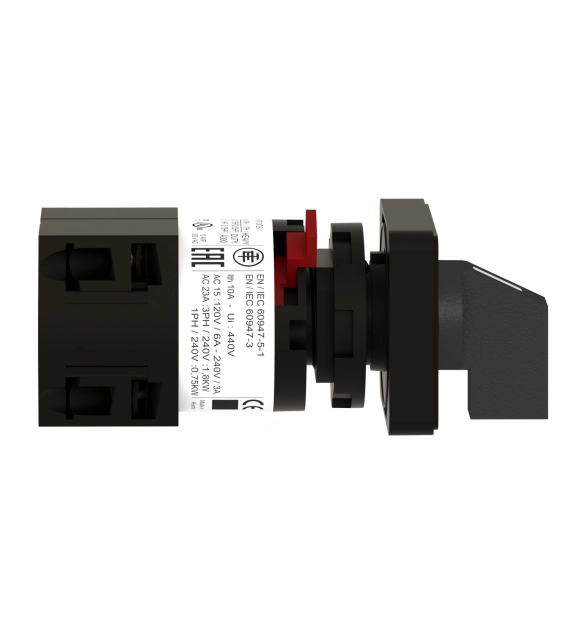

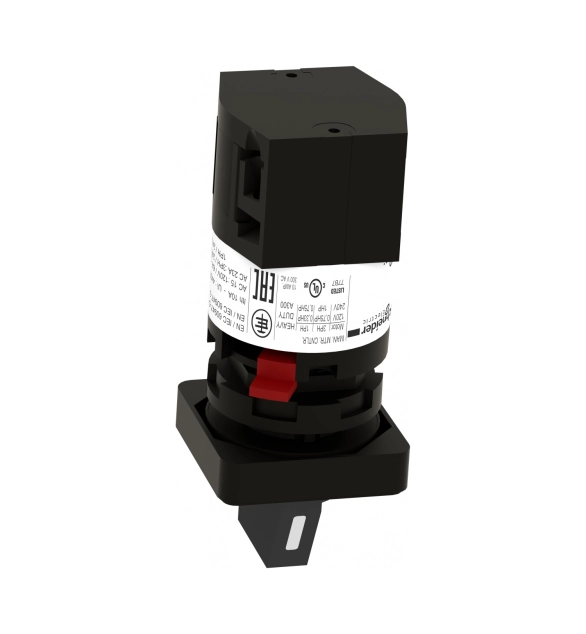

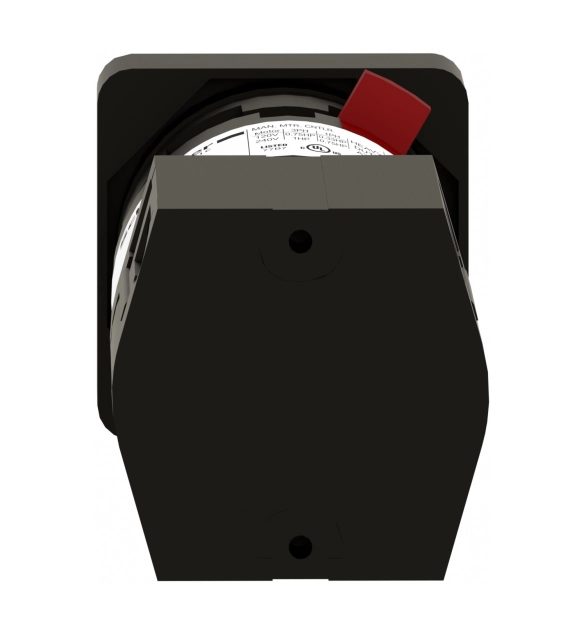

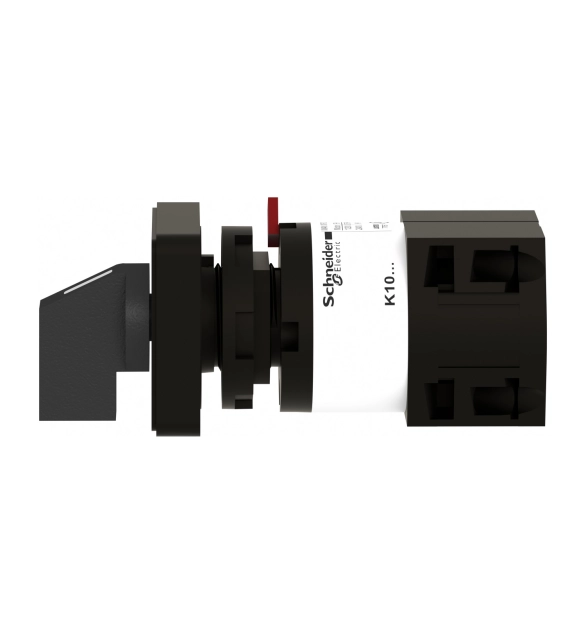

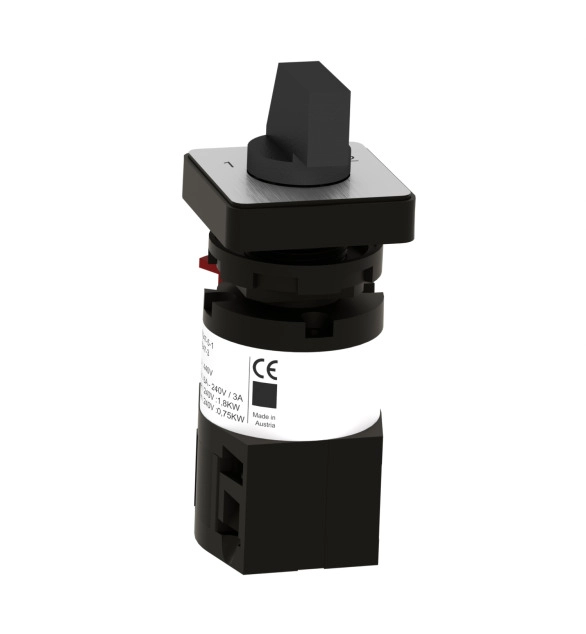

This Harmony K10 cam stepping switch has 2 poles (2P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 2 - 3 - 4" marking to indicate the position of the switch. This metal head cam stepping switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 45 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.
