СКУ: K1A001ALH

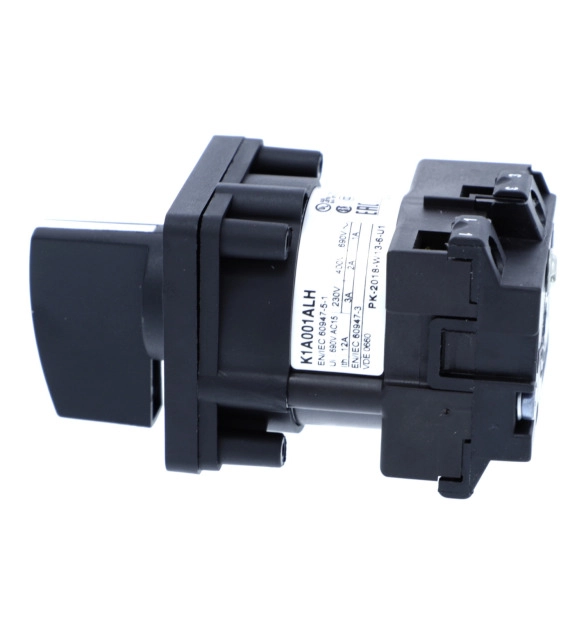

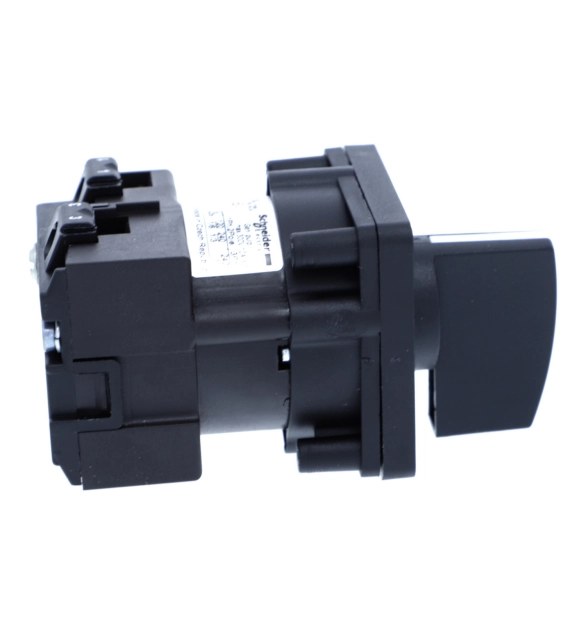

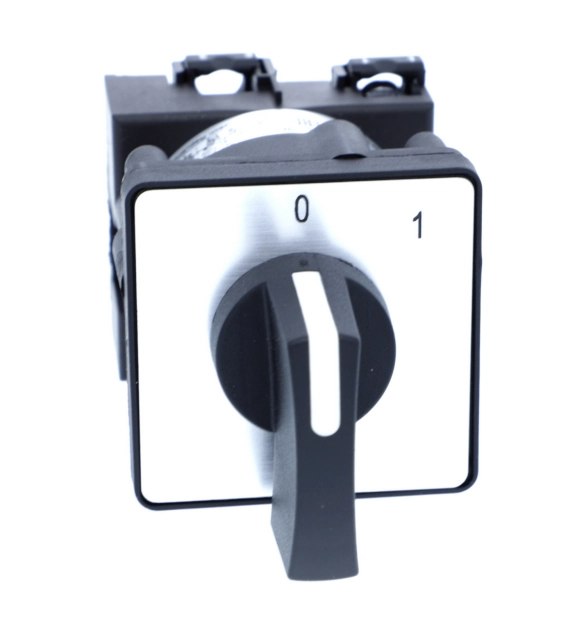

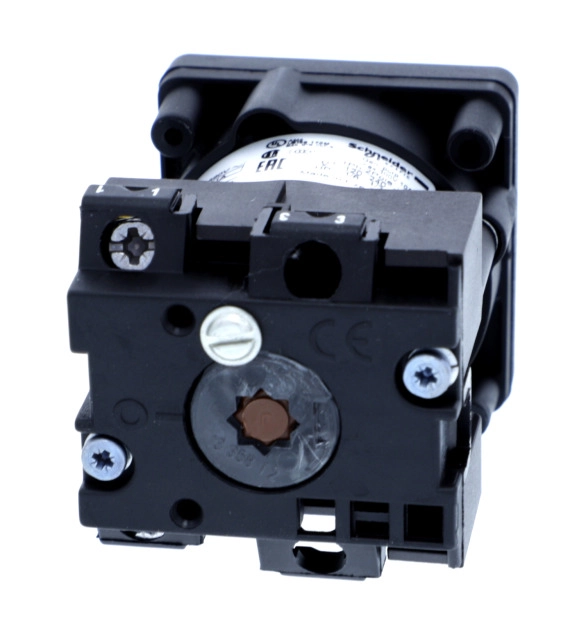

Пакетен прекъсвач CAM SWITCH K1A001ALH
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Suitable for distribution board installation
FALSE
-
Suitable for floor mounting
FALSE
-
Rated permanent current Iu
12
-
Number of poles
1
-
Type of control element
EV004095
-
Material housing
EV000139
-
With zero (off) position
TRUE
-
With retraction in 0-position
FALSE
-
Complete device in housing
TRUE
-
Rated operation current Ie at AC-3, 400 V
3.3
-
Degree of protection (IP), front side
EV008925
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as change-over contact
-
Number of auxiliary contacts as normally open contact
-
Rated operation power at AC-3, 400 V
1.5
-
Suitable for front mounting
TRUE
-
Suitable for intermediate mounting
TRUE
-
Model
EV006495
This Harmony K1 complete cam switch/selector switch has 1 pole (1P). It also has a rating of 12A, a screw clamp mounting mode and a metallic color with black marking. It has "2 - 0 - 1" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 45 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.
