СКУ: ABE7R16S212
Основа рел. EM W10 16изх. 1C
-
Brand
Schneider Electric
-
Transparent
FALSE
-
Colour
EV000270
-
Mounting method
EV000154
-
Type of electrical connection 1
EV000415
-
Closing plate required
FALSE
-
Halogen free
FALSE
-
Operating temperature
-5
-
Inflammability class of insulation material according to with UL94
EV000154
-
Rated voltage
24
-
Explosion-tested version 'Ex e'
FALSE
-
Number of poles
16
-
Material insulation body
EV000154
-
Type of electrical connection 2
EV000414
-
Number of clamp positions per pole
2
-
Drill hole distance centrically
10
-
Connectable conductor cross section solid-core
0.324
-
Rated current In
0.09

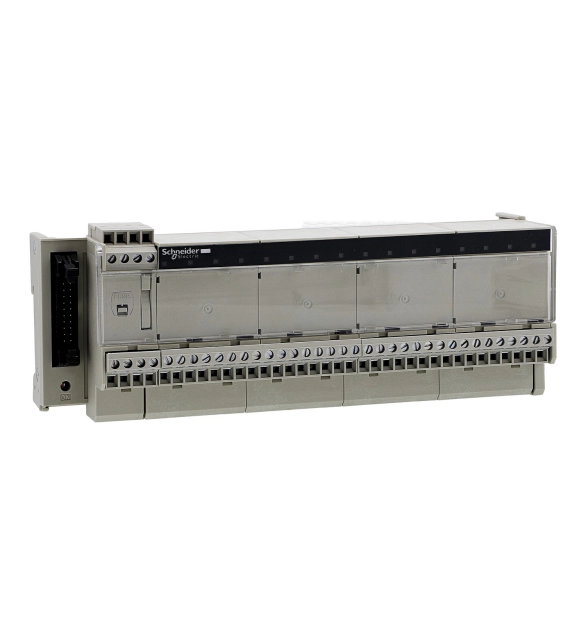

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a sub-base with fixed relays for 16 channels, an integral NO contact and common, with 2 terminals per channel. Its control circuit voltage is 24VDC. It provides a digital output control function. It is furnished with removable screw terminal for electrical connection, with a 20-way HE10 connector, and electromechanical relays. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a relay output sub-base with IP20 degree of protection. It weighs 0.400kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by DNV, CSA, UL, GL and EAC. It is suitable for use with Modicon M221 Book, TSX Micro and Modicon Premium controllers, Modicon TM3 and X80 I/O expansion modules. It is delivered in 1 package (PCE type). Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
