СКУ: VW3A5502
общ режим на филтър за намаляване на тока - 219.6 µH
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV000154
-
Suitable as radio interference suppression filter
FALSE
-
Suitable as audio frequency blockage
FALSE
-
Number of poles, primary side
3
-
Suitable as du/dt-filter
FALSE
-
Max. rated operation voltage Ue
480
-
Suitable as sinus filter
FALSE
-
Rated operation frequency
-
Rated current at AC
1.1
-
Rated clock frequency
10

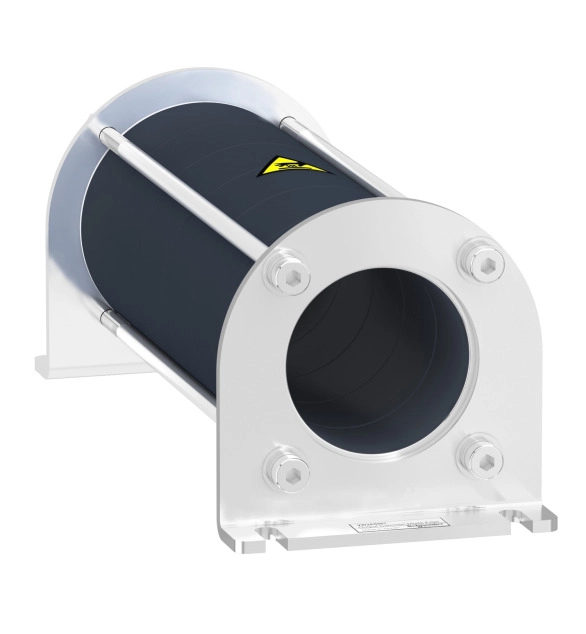

This common mode filter is an option for variable speed drives of the Altivar range. It is possible to use the common mode filter at the output terminals of the drive, the dv/dt filter, or the sinus filter. Its inductance value is equal to 219.6µH. It is used as an output filter to obtain bearing current reduction. This filter reduces the RFI (radio frequency interference) of the motor cable and improvement of the effectiveness of the EMC filter for conducted emissions. It reduces the high frequency currents circulating in the motor bearings to help to prevent them from being damaged. It weighs 0.66kg, and its dimensions are 66mm wide, 163.8mm high, and 66mm deep. It is designed to improve drive installations. It conforms to IEC 60721-3-3 shocks and vibration class 3M4.
