СКУ: 19066
Независим работ. изключв. MX И OF 24VAC/DC ЗА NG125
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000460
-
Suitable for power circuit breaker
TRUE
-
Number of contacts as change-over contact
1
-
Suitable for motor safety switch
FALSE
-
Suitable for overload relay
FALSE
-
Rated control supply voltage Us at AC 50HZ
24
-
Rated control supply voltage Us at AC 60HZ
24
-
Suitable for off-load switch
TRUE
-
Rated control supply voltage Us at DC
24
-
Type of electric connection
EV000154
-
Number of contacts as normally open contact
-
Number of contacts as normally closed contact

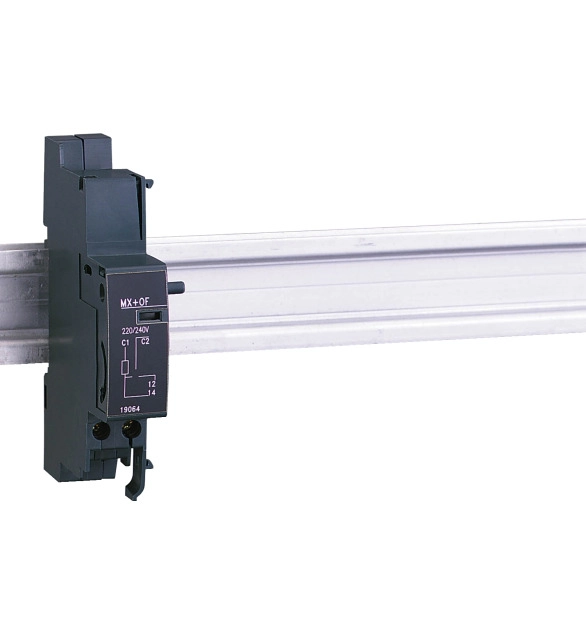

This Acti9 MX+OF electrical auxiliary is a shunt trip release device with open/close auxiliary contact. It is dedicated to NG125. This device includes an open/close contact OF to indicate the open or closed position of the circuit breaker. It is provided with a self-interrupting contact. The width in 9mm pitches is 2. The product trips the associated device when it is powered on. The operating frequency is between 50Hz and 60Hz. It also works on direct current. The In rated current is from 0.1A to 6A at 240VAC and 0.1A to 3A at 48VDC. The Uc control circuit voltage is 24VAC and 24VDC. It can be mounted on a DIN rail for modular installation. The dimensions are (W) 18mm x (H) 105mm x (D) 78mm. The product weight is 0.132kg. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C. This product complies with EN/IEC 60947-2 standard.
