СКУ: EZ9A32223
Напреженов изключвател EASY9
-
Brand
Schneider Electric
-
Width in number of modular spacings
1
-
Voltage type for actuating
EV000460
-
Rated voltage
230
-
With auto test for earth leakage function
FALSE
-
Number of fault-signal switches
1
-
Device fitting
EV000646
-
Installed at the factory
FALSE
-
Suitable for max. current main contact unit
63
-
Additional equipment
EV010145
-
Number of contacts as normally closed contact
-
Number of contacts as change-over contact
-
Number of contacts as normally open contact
-
Suitable for max. number of poles main contact unit (total)
2

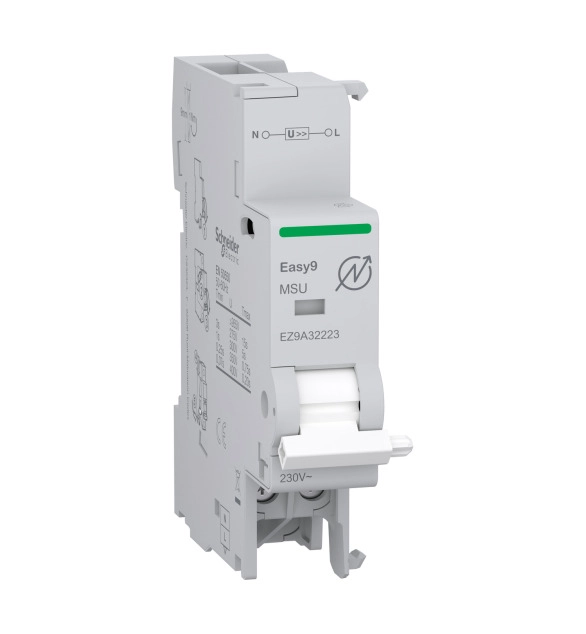

This Easy9 product is a 1P+N overvoltage release. It is dedicated to Easy9 miniature circuit-breaker,Easy9 residual current breaker with overcurrent protection(RCBO). The [Uc] control circuit voltage is 400VAC. The [Ui] rated insulation voltage is 400VAC. The product color is grey (RAL9035). It can be mounted on a DIN rail for modular installation. Tightening torque is 1-1 N.m., and wire stripping length is 9mm. Connections are screw clamp terminals (bottom)1.5-2.5 mm² for rigid,1.5-1.5 mm² for flexible. Tightening torque is 1-1 N.m., and wire stripping length is 9 mm. The dimensions are (W) 18mm x (H)81mm x (D) 68mm. The operating temperature is -35°C to + 70°C. The storage temperature is -40°C to + 85°C. IK degree of protection IK05 and IP degree of protection IP20, Overvoltage category is II This product complies with EN 50550 standards.
