СКУ: RE22R2MMU

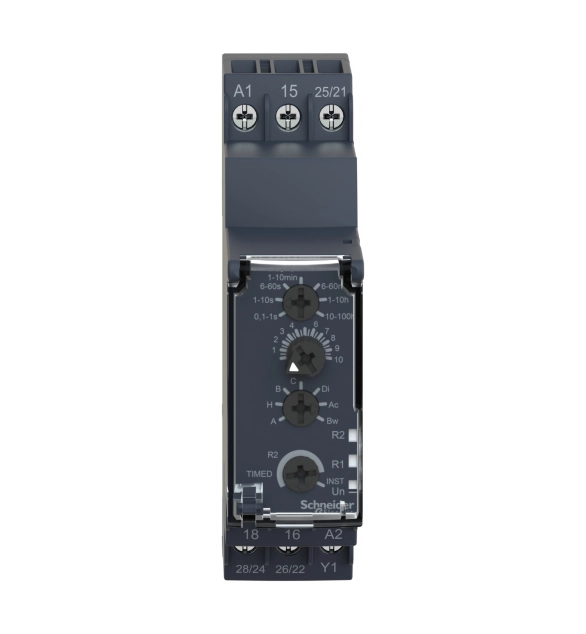

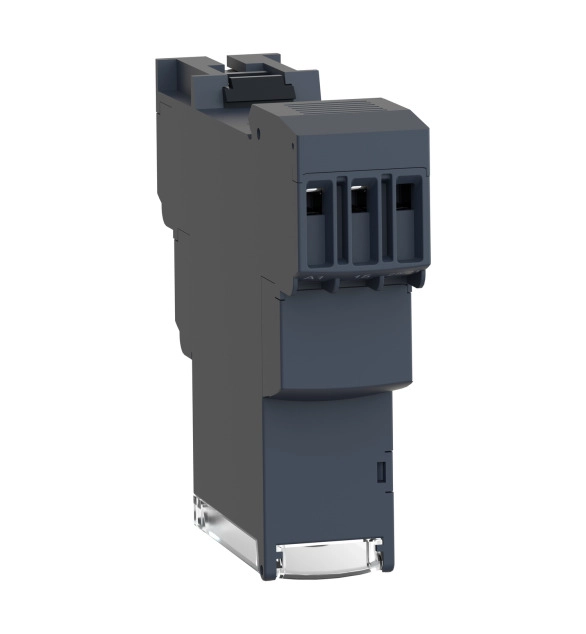

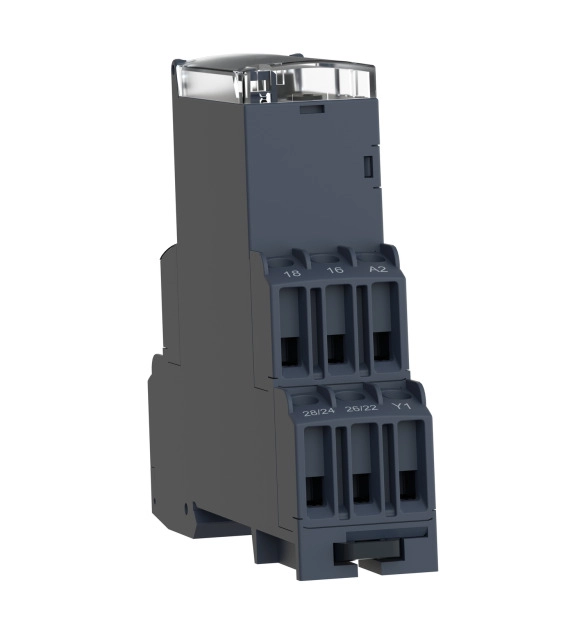

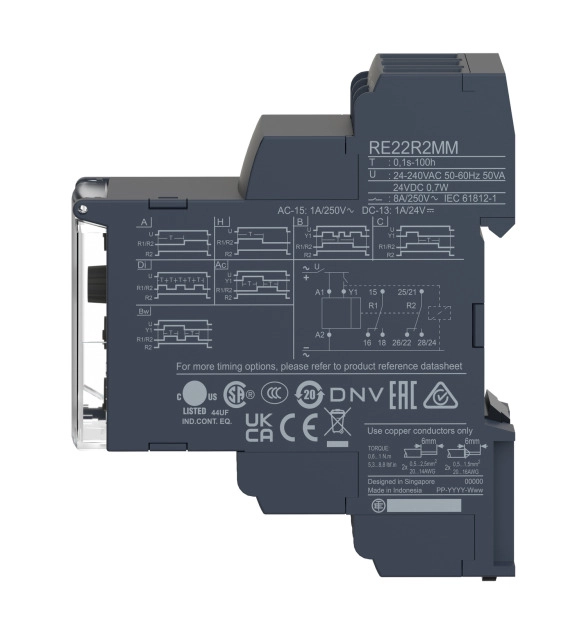

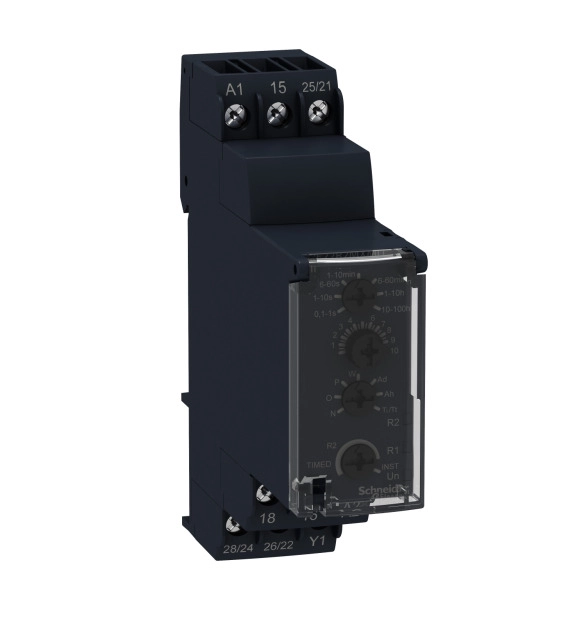

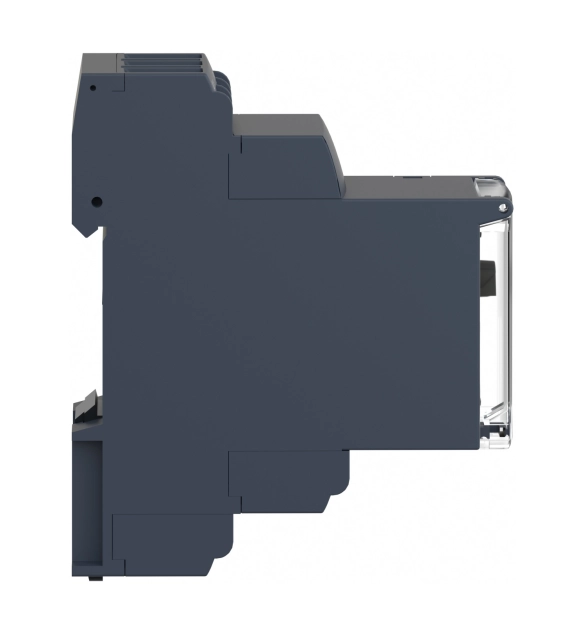

Multi relay 8A 2CO 0.1s 100h 24V

  • Brand
    Schneider Electric
  • Type of electric connection
    EV000415
  • Suitable for front mounting
    FALSE
  • Rated control supply voltage Us at AC 50HZ
    24
  • Rated control supply voltage Us at AC 60HZ
    24
  • Voltage type for actuating
    EV000509
  • Rated control supply voltage Us at DC
    24
  • Height
    90
  • With semiconductor output
    FALSE
  • Number of outputs, delayed, normally open contact
  • Number of outputs, delayed, normally closed contact
  • Pluggable on auxiliary contact block
    FALSE
  • Clock function, starting with pause, variable
    FALSE
  • Clock function, starting with pulse, variable
    FALSE
  • Number of outputs, undelayed, change-over contact
    1
  • Number of outputs, undelayed, normally open contact
  • Number of outputs, undelayed, normally closed contact
  • Function floating contact on de-energization
    FALSE
  • Function pulse shaping
    TRUE
  • Suitable for DIN rail (top hat rail) mounting
    TRUE
  • Function floating contact on energization
    FALSE
  • With plug-in socket
    FALSE
  • Function star-delta
    FALSE
  • Suitable as remote control
    FALSE
  • Time range
    0.1
  • Function delay-on energization
    TRUE
  • Width
    22.5
  • Function delay on de-energization
    TRUE
  • Nominal current
    8
  • Function flashing, starting with pause, fixed time
    TRUE
  • Function flashing, starting with pulse, fixed time
    TRUE
  • Remote operation possible
    TRUE
  • Depth
    79.5
  • Number of outputs, delayed, change-over contact
    2
  • Outputs, reversible delayed/undelayed
    TRUE

This Harmony RE22 modular multi function timer can be set between 0.1 seconds and 100 hours. It provides multi functions and it is mountable on DIN rail. This modular multi function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.
