СКУ: LUB12

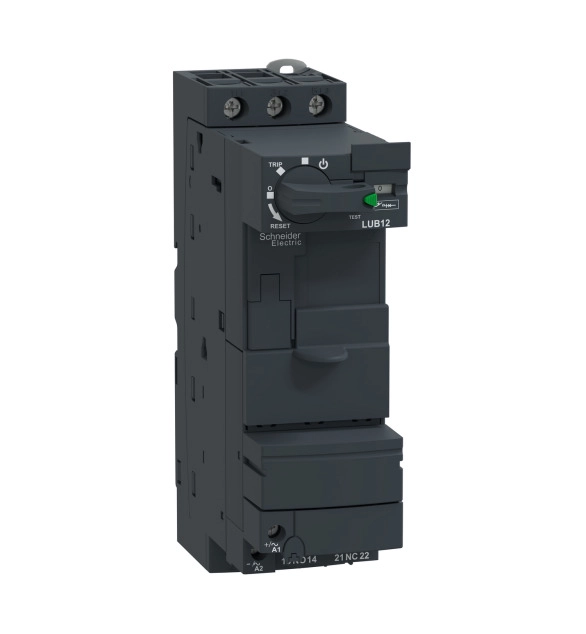

Мот. пускател-основа SCREW CLAMP BASE 12A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Rated operation power at AC-3, 400 V
5.5
-
Degree of protection (IP)
EV006405
-
Suitable for emergency stop
FALSE
-
Rated control supply voltage Us at AC 50HZ
24
-
Rated control supply voltage Us at AC 60HZ
24
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at DC
24
-
Supporting protocol for SERCOS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Supporting protocol for CAN
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Supporting protocol for Modbus
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Rated conditional short-circuit current, type 1, 480 Y/277 V
10000
-
Rated conditional short-circuit current, type 2, 230 V
50000
-
Rated conditional short-circuit current, type 1, 600 Y/347 V
4000
-
With transformer
FALSE
-
Ambient temperature, upper operating limit
70
-
External reset possible
FALSE
-
Type of electrical connection for auxiliary- and control current circuit
EV000415
-
Rated conditional short-circuit current, type 2, 400 V
50000
-
Height
154
-
Number of command positions
3
-
Width
45
-
Coordination class according to IEC 60947-4-3
EV006627
-
Depth
126
-
Type of motor starter
EV004003
-
Rail mounting possible
TRUE
-
Supporting protocol for other bus systems
FALSE
-
With fuse
FALSE
-
With short-circuit release
TRUE
-
Rated operation current Ie
12
-
Rated operation current at AC-3, 400 V
12
-
Rated operation power at AC-3, 230 V, 3-phase
3
-
Rated power, 575 V, 60 Hz, 3-phase
5.5
-
Rated power, 460 V, 60 Hz, 3-phase
5.5
-
Number of indicator lights
TeSys U standard power base, 3 poles (3NO), 12A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW at 400V. Base composed of power contacts, rotary handle, with a modular design for additional modules to form a "all in one" starter controller with basic or advanced protection and control functions. It is equipped with a control terminal block, and blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA at 400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine).
