монофазно захранване, 100...240 V вход, 24 V DC изход, 156 W, 6,5 A | Spark & Co
  • 3D
|

СКУ: ABL2REM24065K

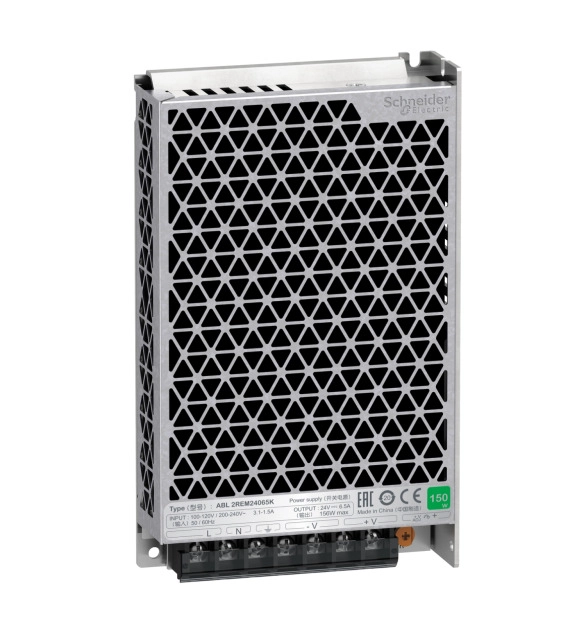

монофазно захранване, 100...240 V вход, 24 V DC изход, 156 W, 6,5 A

  • Brand
    Schneider Electric
  • Type of electric connection
    EV000415
  • Degree of protection (IP)
    EV006405
  • SIL according to IEC 61508
    EV000494
  • Performance level according to EN ISO 13849-1
    EV000494
  • Suitable for safety functions
    FALSE
  • Rail mounting possible
    TRUE
  • Voltage type of supply voltage
    EV000460
  • Width
    97
  • Modular version
    FALSE
  • Depth
    30
  • Direct mounting possible
    TRUE
  • Secondary voltage adjustable
    FALSE
  • Short-circuit-proof
    FALSE
  • Nominal value output voltage 1
    24
  • Wall mounting possible
    FALSE
  • 1st secondary output voltage
    24
  • Rated supply voltage at AC 50 Hz
    100
  • Rated supply voltage at AC 60 Hz
    100
  • Output voltage stabilized
    FALSE
  • Stabilized
    FALSE
  • Power output
    150
  • Height
    159
  • Nominal value output current 1
    6.5
  • Max. output current 1
    6.5

This power supply belongs to Easy Modicon power supply range (formely known as Phaseo Easy). It is a regulated switch mode 24V DC power supply, model 150W, with a 100V to 240V AC output voltage, and 156W nominal power. Its output current is 6.5A. It offers better performance with cost effective. Its cooling is based on natural convection. It has a manual voltage switching. It measures 215mm wide x 115mm high x 30mm deep. This power supply is fitted for repetitive machines. ABL2 ps are certified with: CE, EAC, KC, RCM, EN62368-1(safety), EN 61000-6-2, EN 61000-4-2/3/4/5/6/8/11 (EMC), 55032 class B, RoHS. This power supply has fixing holes for panel mounting or the 4-corner bracket mounting. Better performance with cost effective. Smart design.
