СКУ: TM3XHSC202

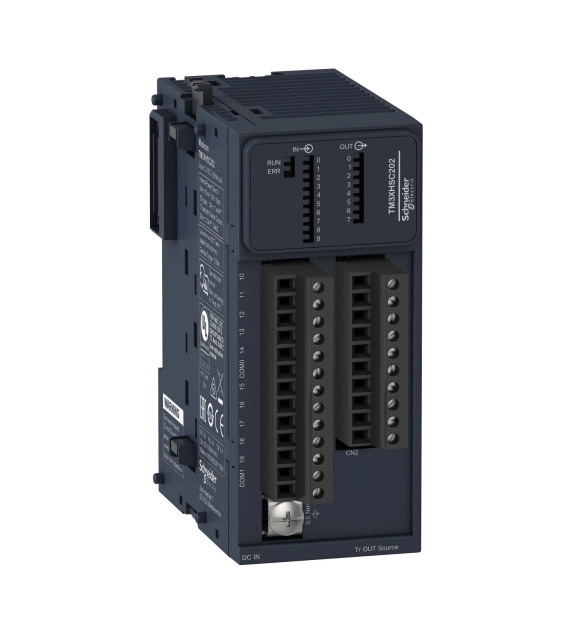

Module TM3 Expert 2 HSC Screw
-
Brand
Schneider Electric
-
Depth
60
-
SIL according to IEC 61508
EV000494
-
System accessory
TRUE
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Front built-in possible
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Rack-assembly possible
FALSE
-
Wall mounting/direct mounting
FALSE
-
Rail mounting possible
TRUE
-
Type of output voltage
EV000461
-
Height
105
-
Width
12.5
-
Type of voltage (input voltage)
EV000461
-
Input voltage at DC
24
-
Number of slots
1
-
With pluggable modules, digital I/O
FALSE
-
With pluggable modules, analogue I/O
FALSE
-
With integrated power supply
FALSE
-
With pluggable modules, central modules
FALSE
-
With pluggable modules, others
TRUE
-
Output voltage at DC
24
-
With pluggable modules, communication modules
TRUE
-
With pluggable modules, function and technology modules
FALSE
This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs. This counter module provides 10 fast inputs and 8 fast outputs. It is a high-speed counter with reflex output management, no event management. It is used to count the pulses generated by a sensor or to process signals from an incremental encoder. Its counting frequency is 200kHz, and it operates via a 24V DC external power supply. Fitted with removable screw terminals for inputs and supply, 3.81 mm pitch, IP20 rated. It measures 39mm wide, 85mm deep and 90mm high, and weighs 0.150kg Engineered to handle high-speed pulse inputs for precise counting and deliver fast, pulse-type outputs for optimal performance. It is certified by CSA, cULus, IACS E10, RCM, CE, UKCA, and EAC. It is compatible with the Modicon M262 motion/logic controller and is configurable with EcoStruxure Machine Expert software. It is delivered in 1 package (PCE type). It is mounted on a symmetrical DIN rail, or with a specific kit for plate or panel mounting. Modicon TM3 I/O system enables flexible, customizable expansion of controller I/O terminals. From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution.
