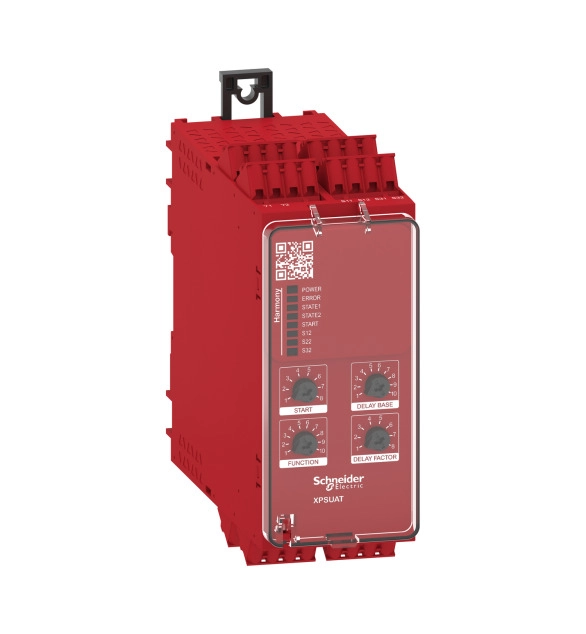

Модул за безопасност, Harmony Safety Automation, Cat.4, features XPSUAK + delayed outputs, 48-240v AC/DC, spring

This product belongs to the Harmony XPSU range of safety relays. It monitors E-stop, guard/magnetic/RFID switches, PNP/NPN sensors, light curtains, mats & edges. The safety relay is powered with 48-240V AC/DC and equipped with a spring removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. It features 3 safety inputs (2+, 1−), 4 pulsed outputs, 7 safety outputs (6 NO, 1 NC), 2 diagnostic outputs. The maximum safety level is PLe category4 (ISO 13849-1), SIL CL3 (IEC 62061), SIL3 (IEC 61508). It weighs 0,350kg and measures 45mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. It conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal relays simplify single safety function management for machines of low to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.
