Модул Vigi C120 - 4P - 300 mA - клас A si

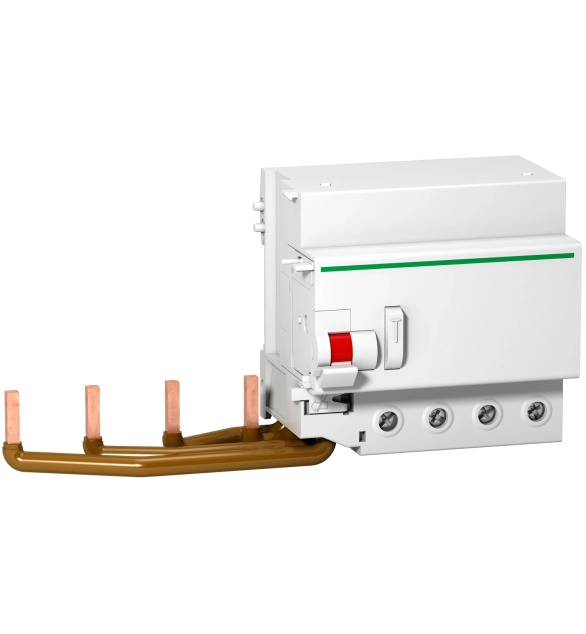

This Acti9 Vigi C120 product is a modular add-on residual current device. It is a 4P device with 125A rated current. The earth-leakage protection class is type A-SI with a sensitivity of 300mA and a voltage-independent technology. This device protects against short circuits, cable overload, and electrical shock from indirect contact. The A-SI type provides increased immunity from electrical interference and a polluted or corrosive environment. This product complies with EN 61009-1 and EN 61009-2-1 standards. It boasts exceptional durability, with the mechanical endurance reaching up to 20000 cycles. The rated operational voltage is from 230VAC to 415VAC. The rated insulation voltage is 500VAC, and the rated impulse withstand voltage is 6kV. Additionally, the pollution degree 3 ensures reliable performance in challenging environments. It can be mounted on a 35mm symmetrical DIN rail. The width in 9mm pitches is 10. The dimensions are (W) 198mm x (H) 95mm x (D) 73mm. The product colour is white. The weight is 0.58kg. It offers reliable protection with an IP20 rating on its terminals. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.
