СКУ: A9N18567

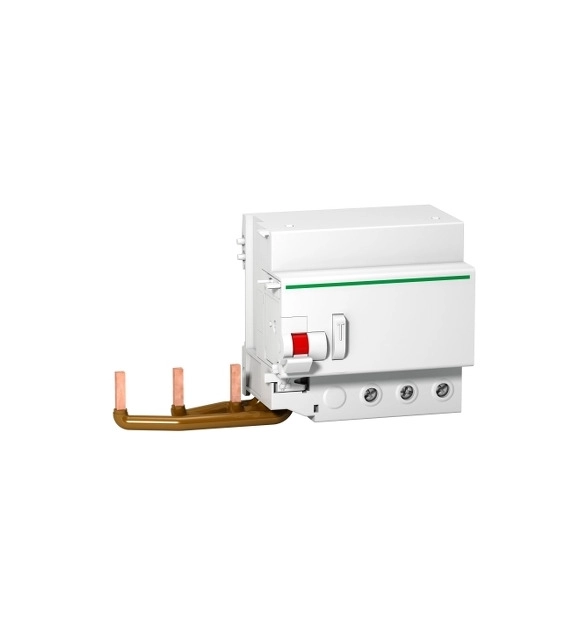

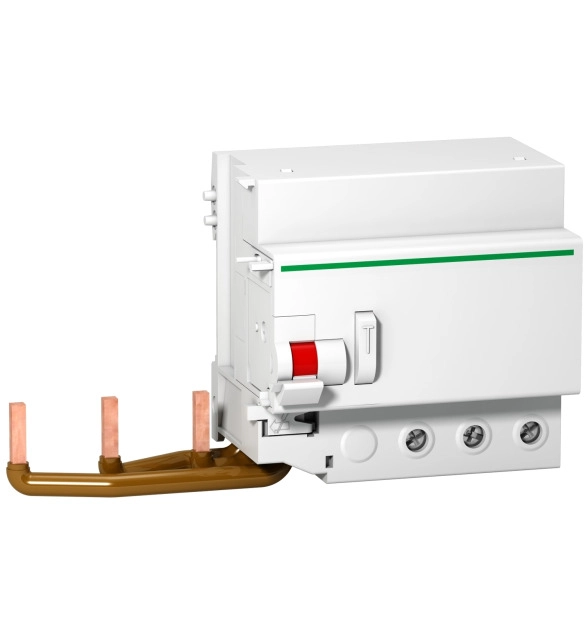

Модул Vigi C120 - 3P - 300 mA - клас AC
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Number of poles
4
-
Connectable conductor cross section multi-wired
1
-
Pollution degree
3
-
Delay adjustable
FALSE
-
Frequency
EV008015
-
Rated fault current adjustable
FALSE
-
Anti-nuisance tripping version
FALSE
-
Rated fault current
0.03
-
Nominal current
125
-
Surge current capacity
0.25
-
Rated impulse withstand voltage Uimp
6
-
Connectable conductor cross section solid-core
1
-
Rated insulation voltage Ui
500
-
Ambient temperature during operating
-5
-
Leakage current type
EV000460
-
With interlocking device
FALSE
-
Nominal voltage
400
-
Max. delay time
This Acti9 Vigi C120 is a modular add-on residual current devices. It has 4P with 4 protected poles, rated current is 125A and operating voltage is 230VAC to 415VAC. The earth leakage protection class is AC type with a sensitivity of 500mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN 61009 standard. Electrical endurance goes up to 20000 cycles. The Ue rated operational voltage is from 230VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on 35 mm symmetrical DIN rail. The width in 9mm pitches is 10. The product color is white (RAL9003). The dimensions are (W) 198mm x (H) 95mm x (D) 73mm. The weight is 0.58kg. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 60°C.
