СКУ: MTN645094

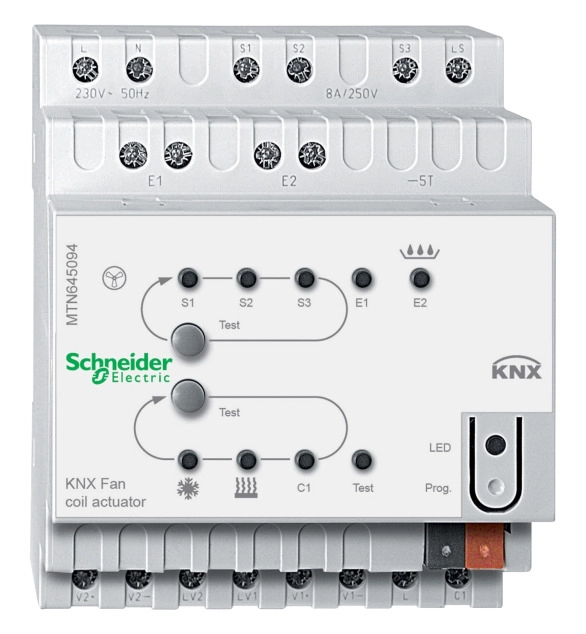

Модул KNX за вентилаторен конвектор
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
4
-
Bus system KNX radio
FALSE
-
Bus system Powernet
FALSE
-
Bus system LON
FALSE
-
Mounting method
EV006471
-
Bus system radio frequent
FALSE
-
Other bus systems
EV000494
-
Radio frequent bidirectional
FALSE
-
With bus connection
TRUE
-
Bus system KNX
TRUE
-
Bus module detachable
FALSE
-
Number of outputs
5
-
Manual switch
TRUE
-
Valve protection function
FALSE
-
Correcting variable switching
TRUE
-
Max. output current
0.5
-
Max. switching current (resistive load)
0.5
-
Correcting variable consistent
TRUE
-
Switching voltage
24
Fan Coil actuator can control one fan coil with up to three speed fan and 2 valves. It can control 2 or 4 pipe fan coils. the actuator can be installed for Installation on DIN rails TH35 according to EN 60715. It has Two floating binary inputs for example for window contact and level contact for condensed water container. Each fan relay has 8A switching capacaity. The push-button plus with room temperature control can be used to activate the fan coil actuator. There is an Auxilary relay with switching capacity 16 A for electrical heating as an example. Power supply is AC 230 V ±10 %, 50/60 Hz. The device has 4 module width, approximately 72 mm. The color of device is light grey.
