СКУ: MTN647091

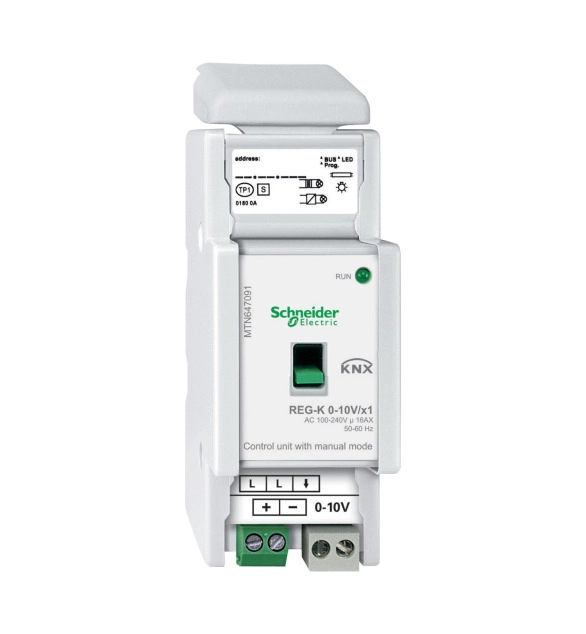

Модул KNX 1 аналогов изход
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
2.5
-
With LED indication
FALSE
-
Bus system KNX radio
FALSE
-
Bus system Powernet
FALSE
-
Bus system LON
FALSE
-
Mounting method
EV006471
-
Bus system radio frequent
FALSE
-
Other bus systems
EV000494
-
Radio frequent bidirectional
FALSE
-
With bus connection
TRUE
-
Bus system KNX
TRUE
-
Substation input
FALSE
-
Number of outputs
1
-
Local operation/hand operation
TRUE
-
Max. switching power
3600
-
Max. control current
100
-
Interface 1-10 V
TRUE
-
Max. switching current (resistive load)
16
-
Number of inputs for light sensor
Control unit 0-10 V REG-K/1-gang with manual mode. For connecting devices with 0-10 V interface to KNX. With integrated bus coupler and screw terminals (230 V) or plug-in screw terminals (0-10 V). Each individual 230 V switch output can be operated manually with a manual switch. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary. KNX software functions: Different dimming curves and dimming speeds, the same dimming time, memory function, ON/OFF delay, staircase time function with/without manual OFF function. Scenes (up to eight stored brightness values can be retrieved), central function, logic operation or priority control, blocking function, status feedback, behaviour on bus voltage recovery. Switch contact: for switching the electronic ballasts/transformers. Nominal voltage: AC 100-240 V ±10%. Operating voltage: min. AC 90 V - max. AC 265 V. Mains frequency: 50-60 Hz ±10%. Nominal current: 16 A, inductive load cos Phi 0.6. Nominal load: Incandescent lamps: AC 100 V, max. 1600 W. AC 230 V, max. 3600 W. AC 240 V, max. 3840 W. Halogen lamps: AC 100 V, max. 1086 W. AC 230 V, max. 2500 W. AC 240 V, max. 2608 W. Fluorescent lamps: AC 100 V, max. 1086 VA. AC 230 V, max. 2500 VA. AC 240 V, max. 2608 VA. parallel-compensated. Capacitive load: AC 100 V, max. 1600 W, 200 µF. AC 230 V, max. 3600 W, 200 µF. AC 240 V, max. 3840 W, 200 µF. 0-10 V interface: 0.12-100 mA. Voltage range: DC 0-10 V. Device width: 2.5 modules, approx. 45 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey.
