СКУ: 170ADM35010
Модул 16 DI/16 цифр. изх. 24V пост. ток.
-
Brand
Schneider Electric
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Supply voltage DC
24
-
Type of electric connection
EV000154
-
Digital inputs configurable
FALSE
-
Depth
40
-
Voltage type of supply voltage
EV000509
-
Digital outputs configurable
FALSE
-
Type of voltage (input voltage)
EV000509
-
Output current
0.5
-
Short-circuit protection, outputs available
TRUE
-
Type of digital output
EV001529
-
Type of output voltage
EV000509
-
Number of digital inputs
16
-
Width
125
-
Number of digital outputs
16
-
Permitted voltage at input
-3
-
Time delay at signal exchange
3.3
-
Height
141.5
-
Permitted voltage at output
20
-
Input current at signal 1
10

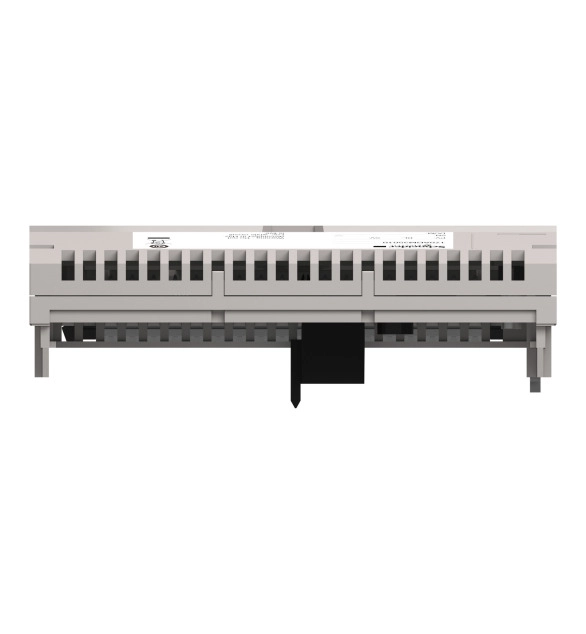

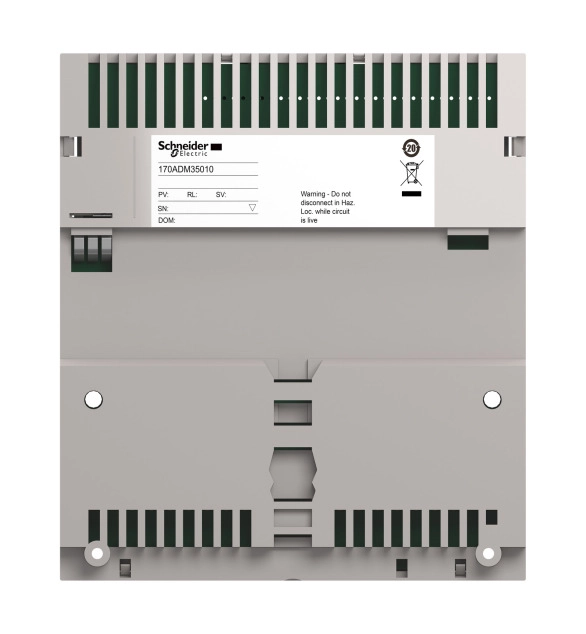

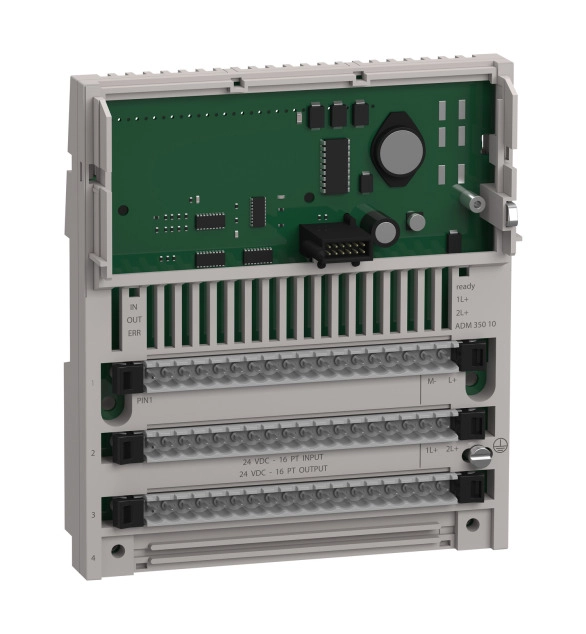

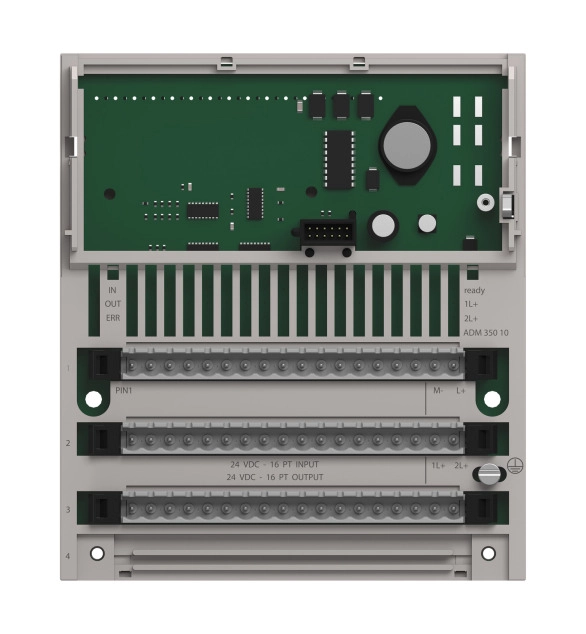

This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete I/O module has 1 group of 16 inputs and 2 groups of 8 solid state outputs with sink (positive) discrete logic. It is an I/O module with a rated supply voltage of 24V DC, an input/output voltage of 24V DC, a current consumption of 250mA at 24V DC and a power dissipation of 8W. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height) and weighs 0.2kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
