СКУ: NSYPLS1827G
Мод. кутия с прозр. капак 7035 Transp PLS box18x27x18
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
Type of cover
EV001012
-
Material housing
EV000139
-
Mounting method
EV000384
-
With lock
FALSE
-
Extension possible
TRUE
-
RAL-number
7035
-
Transparent cover/door
TRUE
-
Cover model
EV000116
-
Colour
EV000270
-
Width
270
-
Height
180
-
Impact strength
EV006815
-
Surface protection
EV006034
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Circuit integrity
EV000494
-
Depth
180
-
Suitable for lightning protection
FALSE
-
Type of door
EV000494
-
Cover with overpressure release
FALSE
-
Protection class
EV000583
-
Suitable for outdoor use
TRUE
-
Material plate thickness cabinet
2
-
Internal depth
165
-
Material plate thickness door/cover
2

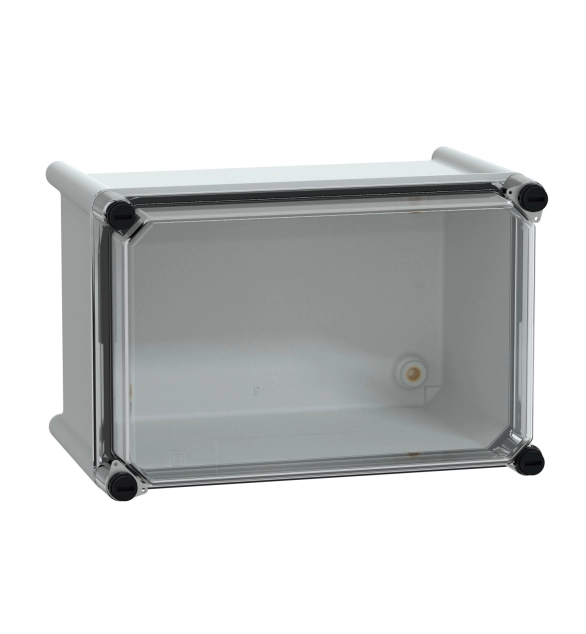

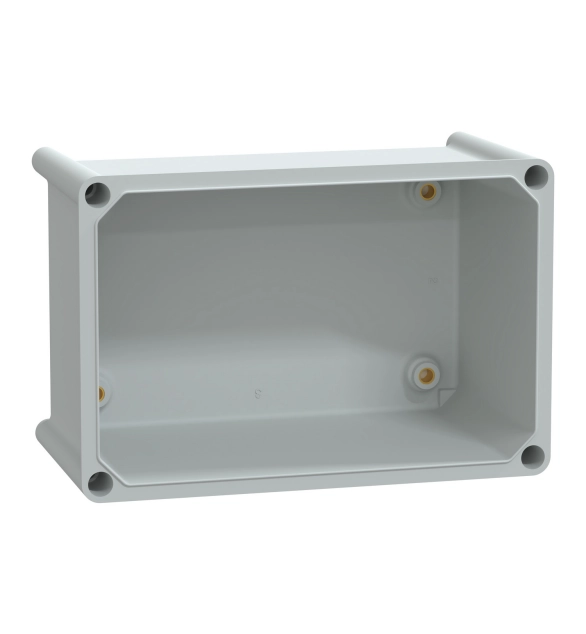

The PanelSeT PLS box have a polyester rear with a transparent polycarbonate and cover come in grey RAL 7035 color. The dimensions are (H) 180 mm x (W) 270 mm x (D) 180 mm. This insulating modular box is made of one piece moulded body and is designed for multi-purpose usage. It is designed to be wall mounted and have a high transparent cover locked by removable screws. The rear of the box is made of fiberglass reinforced polyester and the transparent cover is made of polycarbonate. It offers IP66 protection against dust and water, IK09 hard impact resistance, 960°C fire resistance and class II electrical insulation. It can be used in many environments ranging from -30 °C to 80 °C. The box is halogen-free : no toxic fumes in case of fire or glow wire. It have a smart design allowing modular assembly to form sets for different functions and there are inserts in the body to mount accessories. This box is NEMA 4X, NEMA 13 and IEC 62208 certified.
