СКУ: LV426802
Минималнонапреженов изключвател (с пружина) MN - 48 V AC 50/60Hz - 48 V DC
-
Brand
Schneider Electric
-
Suitable for power circuit breaker
TRUE
-
Suitable for motor safety switch
FALSE
-
Suitable for overload relay
FALSE
-
Suitable for off-load switch
TRUE
-
Voltage type for actuating
EV000509
-
Type of electric connection
EV005752
-
Rated control supply voltage Us at AC 50HZ
48
-
Rated control supply voltage Us at AC 60HZ
48
-
Rated control supply voltage Us at DC
48
-
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
Number of contacts as change-over contact

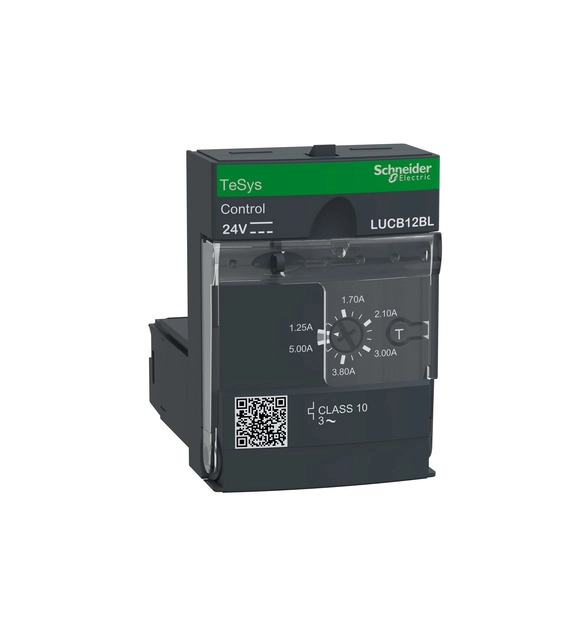

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB120, LUB320, LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW at 400V. It provides full protection to motors with a rated current Ir 3-12A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
