СКУ: A9A26960
Mиним. напреж. изкл. с мигн. действие iMN 220-240VAC/26960/ A9A26960
-
Brand
Schneider Electric
-
Width in number of modular spacings
1
-
Voltage type for actuating
EV000460
-
Rated voltage
240
-
With auto test for earth leakage function
FALSE
-
Suitable for max. number of poles main contact unit (total)
4
-
Device fitting
EV000646
-
Installed at the factory
FALSE
-
Suitable for max. current main contact unit
63
-
Additional equipment
EV010155
-
Number of contacts as normally open contact
-
Number of contacts as normally closed contact
-
Number of contacts as change-over contact
-
Number of fault-signal switches

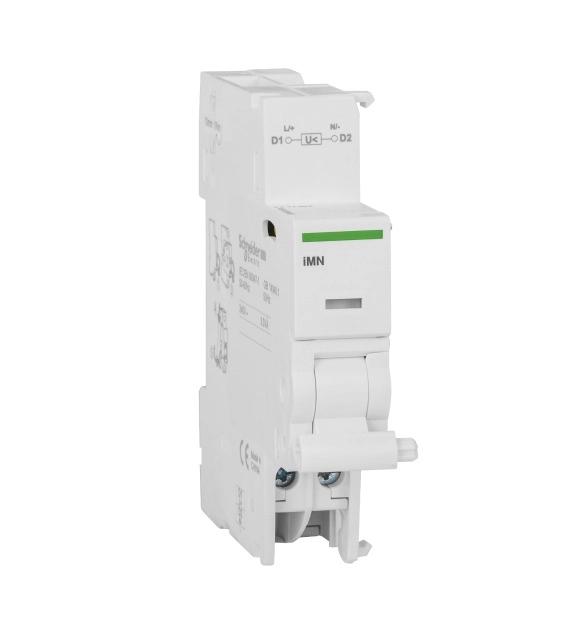

This Acti9 iMN electrical auxiliary is an instantaneous undervoltage release. It is compatible with Acti9 ranges. It prevents device closing again until its input voltage has been restored. Emergency stoppage by normally open pushbutton. It ensures the safety of power supply circuits for several machines by preventing uncontrolled restarting. The width in 9mm pitches is 2. It trips the device with which it is combined when its input voltage decreases (between 70% and 35% of Un). The Uc control circuit voltage is 220…240VAC. The Ue rated operational voltage is 200VAC to 240VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.
